3117-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

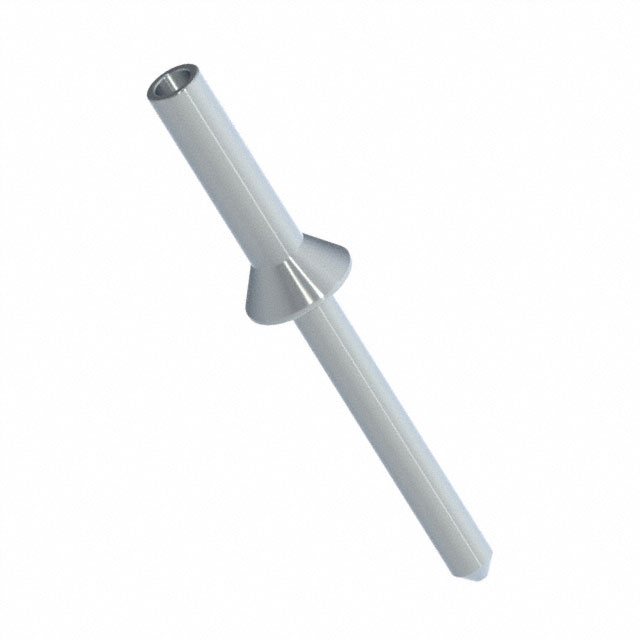

CONN PC PIN CIRC .024DIA TINLEAD
| Part | Mounting Type | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Board Thickness [custom] | Board Thickness [custom] | Termination | Terminal Style | Terminal Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 0.323 in | 8.2 mm | 0.89 mm | 0.035 in | Brass Alloy | 0.11 " | 2.79 mm | 0.06 in | 1.52 mm | Non-Insulated | 4.78 mm | 0.188 in | 0.094 in | 2.39 mm | Swage | Single End | PC Pin | Tin-Lead | 200 Áin | 5.08 Ám |
 Mill-Max Manufacturing Corp. | Through Hole | 0.323 in | 8.2 mm | 0.89 mm | 0.035 in | Brass Alloy | 0.11 " | 2.79 mm | 0.06 in | 1.52 mm | Non-Insulated | 4.78 mm | 0.188 in | 0.094 in | 2.39 mm | Swage | Single End | PC Pin | Tin | 200 Áin | 5.08 Ám |
Mill-Max Manufacturing Corp. | Through Hole | 0.323 in | 8.2 mm | 0.89 mm | 0.035 in | Brass Alloy | 0.11 " | 2.79 mm | 0.06 in | 1.52 mm | Non-Insulated | 4.78 mm | 0.188 in | 0.094 in | 2.39 mm | Swage | Single End | PC Pin | Gold | 50 µin | 1.27 µm |
Mill-Max Manufacturing Corp. | Through Hole | 0.323 in | 8.2 mm | 0.89 mm | 0.035 in | Brass Alloy | 0.11 " | 2.79 mm | 0.06 in | 1.52 mm | Non-Insulated | 4.78 mm | 0.188 in | 0.094 in | 2.39 mm | Swage | Single End | PC Pin | Gold | 20 µin | 0.51 µm |
