LM10502 Series

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Catalog

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Part	Current - Supply	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]

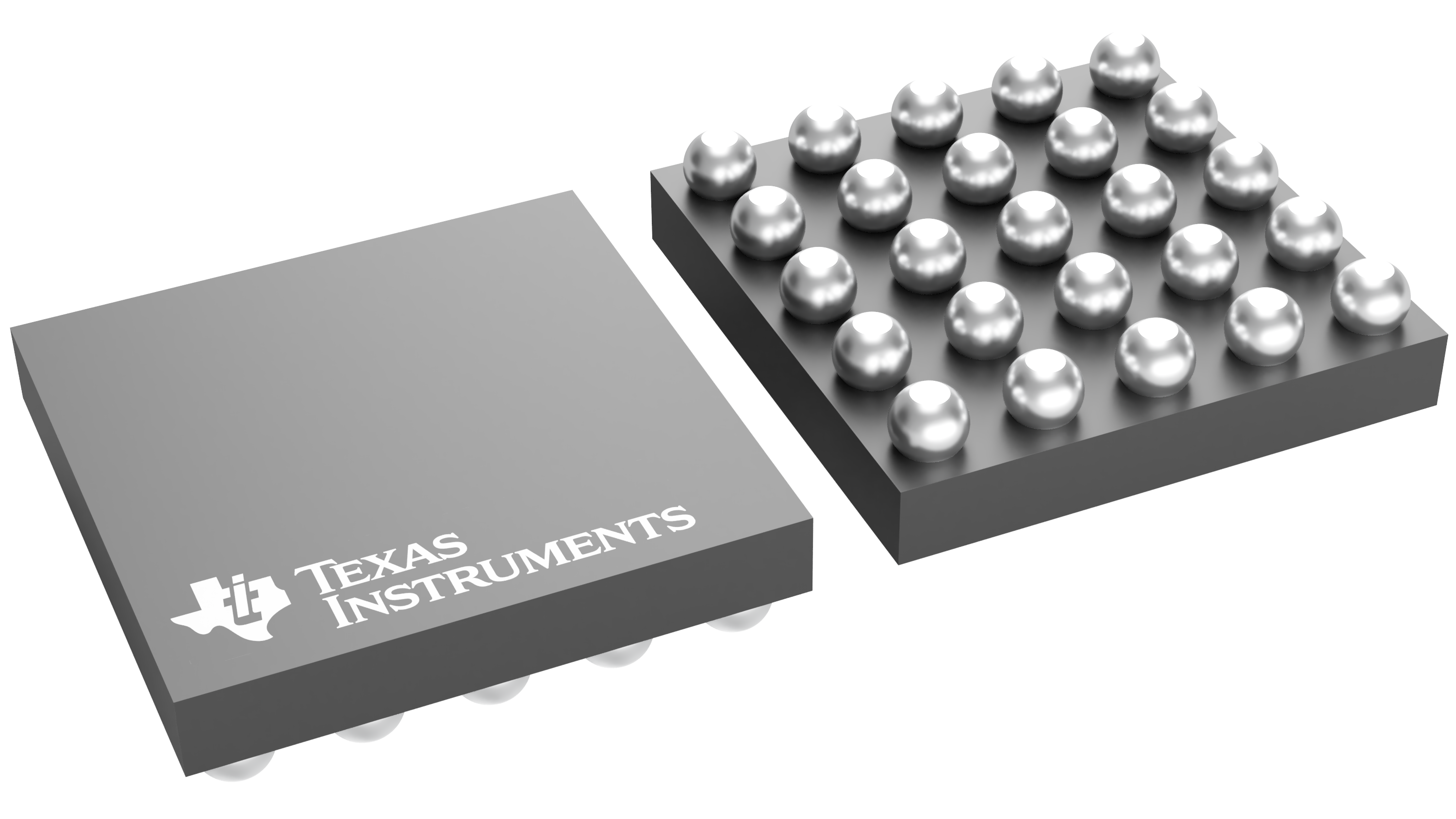

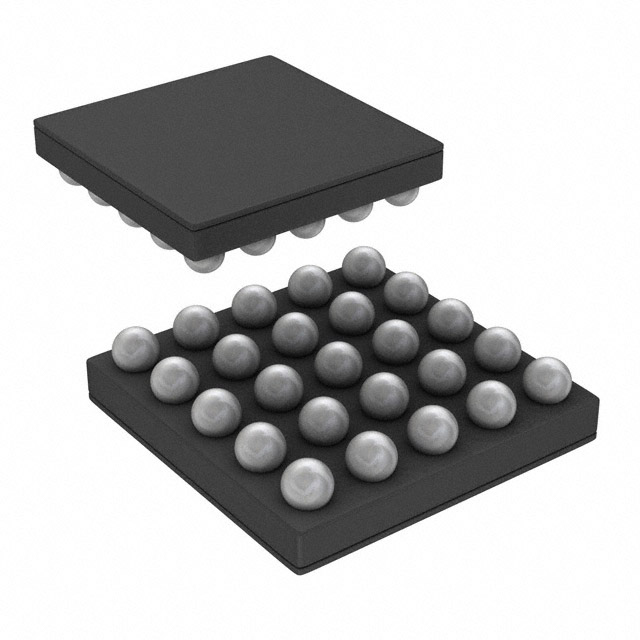

Texas Instruments LM10502TLX/NOPB	60 µA	Surface Mount	5.5 V	3 V	Solid State Drives (SSD)	25-DSBGA	25-WFBGA DSBGA	-30 ░C	85 °C
Texas Instruments LM10502TLE/NOPB	60 µA	Surface Mount	5.5 V	3 V	Solid State Drives (SSD)	25-DSBGA	25-WFBGA DSBGA	-30 ░C	85 °C

Catalog

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Key Features

• Two Highly Efficient Programmable Buck RegulatorsIntegrated FETs with Low RDSONBucks Operate with Their Phases Shifted to Reducethe Input Current Ripple and Capacitor SizeProgrammable Output Voltage via the SPI interfaceOvervoltage and Undervoltage LockoutAutomatic Internal Soft Start with Power-on ResetPFM Mode for Low-Load, High-Efficiency OperationLow-Dropout LDO 3.0V, 250 mASPI-Programmable Interrupt Comparator (2.0V to 4.0V) toMonitor VINKey SpecificationsLM10502 - Programmable Buck Regulators:Buck 1: 1.1V to 3.6V; 1ABuck 2: 0.7V to 1.335V; 1A±3% Feedback Voltage AccuracyUp to 95% Efficient Buck Regulators2MHz Switching Frequency for Smaller Inductor Size2.5 7times; 2.5 mm, 0.5 mm Pitch DSBGA PackageAll trademarks are the property of their respective owners.Two Highly Efficient Programmable Buck RegulatorsIntegrated FETs with Low RDSONBucks Operate with Their Phases Shifted to Reducethe Input Current Ripple and Capacitor SizeProgrammable Output Voltage via the SPI interfaceOvervoltage and Undervoltage LockoutAutomatic Internal Soft Start with Power-on ResetPFM Mode for Low-Load, High-Efficiency OperationLow-Dropout LDO 3.0V, 250 mASPI-Programmable Interrupt Comparator (2.0V to 4.0V) toMonitor VINKey SpecificationsLM10502 - Programmable Buck Regulators:Buck 1: 1.1V to 3.6V; 1ABuck 2: 0.7V to 1.335V; 1A±3% Feedback Voltage AccuracyUp to 95% Efficient Buck Regulators2MHz Switching Frequency for Smaller Inductor Size2.5 7times; 2.5 mm, 0.5 mm Pitch DSBGA PackageAll trademarks are the property of their respective owners.

Description

The LM10502 are advanced PMUs each containing two configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives. The LM10502 operate cooperatively with the application ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 250 mA LDO and a programmable Interrupt Comparator to monitor VIN. The LM10502 are advanced PMUs each containing two configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives. The LM10502 operate cooperatively with the application ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 250 mA LDO and a programmable Interrupt Comparator to monitor VIN.
