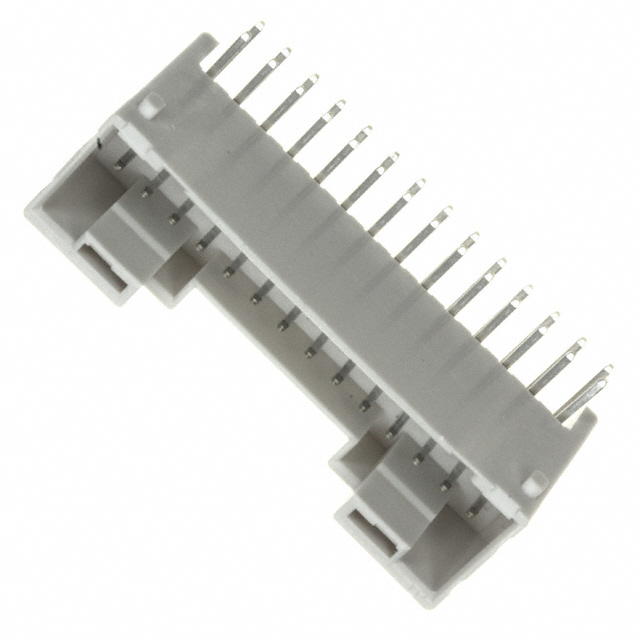

S28B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 28POS 2MM
| Part | Contact Material | Voltage Rating | Insulation Height | Insulation Height | Number of Rows [custom] | Contact Length - Post | Contact Length - Post | Number of Positions | Termination | Contact Shape | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Type | Current Rating (Amps) | Connector Type | Shrouding | Features | Style | Insulation Material | Material Flammability Rating | Fastening Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | 250 V | 0.335 " | 8.51 mm | 2 | 0.118 in | 3 mm | 28 | Solder | Square | 0.079 " | 2 mm | Right Angle Through Hole | All | 2 mm | 0.079 in | Natural | Male Pin | 3 A | Header | Shrouded - 4 Wall | Board Guide | Board to Cable/Wire | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Latch Holder | Tin | 85 °C | -25 °C |
