1303E Series
Manufacturer: Belden Inc.
Beta
⌘K

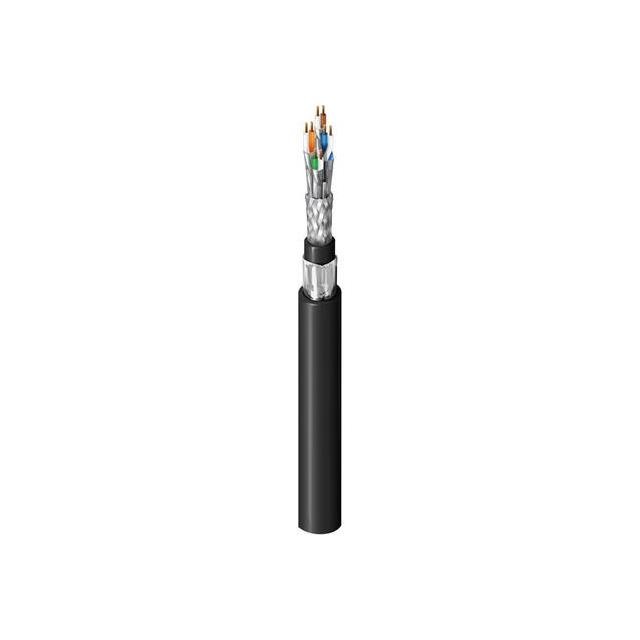

CATSNAKE CAT 6A S/FTP PVC
| Part | Shield Material | Shield Coverage | Number of Conductors | Features | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Wire Gauge | Jacket Color | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Voltage | Shield Type | Length | Length | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 80 % 100 % | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Copper Bare | 24 AWG | Black | Audio Ethernet | 8.64 mm | 0.34 " | Foam Polyethylene (FPE) | 72 V | Braid Foil | 152.4 m | 500 ft | Multi-Pair Cat6a | 7 | 32 AWG |
 Belden Inc. | Aluminum Polyester Copper Tinned | 80 % 100 % | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | -30 ░C | 60 °C | Copper Bare | 24 AWG | Black | Audio Ethernet | 8.64 mm | 0.34 " | Foam Polyethylene (FPE) | 72 V | Braid Foil | 304.8 m | 1000 ft | Multi-Pair Cat6a | 7 | 32 AWG |
