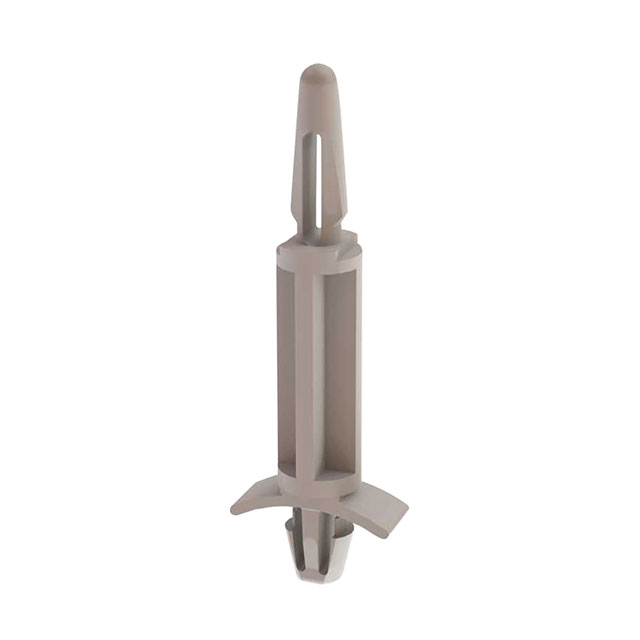

LNCBS Series
Manufacturer: Essentra Access Solutions
Beta
⌘K
BRD SPT SNAP FIT/LOCK NYLON 1/2"
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Features | Holding Type | Between Board Height | Between Board Height | Between Board Height | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Length - Overall [x] | Length - Overall [x] | Mounting Type | Material | Length - Overall | Support Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Access Solutions | 0.187 in | 4.75 mm | 3 in | 0.157 " | 3.99 mm | 0.79 mm | 1.98 mm | 0.031 in | 0.078 " | Winged | Snap Fit | 0.5 in | 12.7 mm | 0.5 in | 0.0625 " | 0.062 " | 1.57 mm | 1.429 in | 36.3 mm | Snap Lock | Nylon | ||
Essentra Access Solutions | 0.187 in | 4.75 mm | 3 in | 0.157 " | 3.99 mm | 0.79 mm | 1.98 mm | 0.031 in | 0.078 " | Winged | Snap Fit | 0.375 in | 9.53 mm | 0.375 in | 0.0625 " | 0.062 " | 1.57 mm | 1.303 in | Snap Lock | Nylon | 33.1 mm | ||
Essentra Access Solutions | 0.187 in | 4.75 mm | 3 in | 0.156 in | 3.96 mm | 0.79 mm | 1.98 mm | 0.031 in | 0.078 " | Arrowhead Snap Lock | 0.375 in | 9.53 mm | 0.375 in | 0.0625 " | 0.062 " | 1.57 mm | Nylon Flame Retardant | 0.15625 in |
