UA7812 Series

1.5-A, 38-V, linear voltage regulator

Catalog

1.5-A, 38-V, linear voltage regulator

Part	Current - Output	Output Configuration	Output Type	Package / Case	Voltage - Input (Max) [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Protection Features	Voltage Dropout (Max) [Max]	PSRR	Number of Regulators	Voltage - Output (Min/Fixed)	PSRR [Min]	PSRR [Max]
Texas Instruments UA7815CKCS	1.5 A	Positive	1.81 mOhm	TO-220-3	30 V	TO-220-3	Through Hole	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	15 V
Texas Instruments UA7812CKCT	1.5 A	Positive	1.81 mOhm	TO-220-3	30 V	TO-220-3	Through Hole	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	68 dB	1	12 V

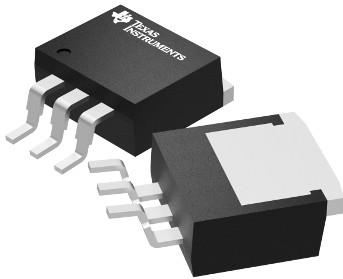

Texas Instruments UA7805CKTTRG3	1.5 A	Positive	1.81 mOhm	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	25 V	TO-263 (DDPAK-3)	Surface Mount	125 °C	Over Temperature Reverse Polarity	2 V		1	5 V	68 dB	78 dB
Texas Instruments UA7815CKCSE3	1.5 A	Positive	1.81 mOhm	TO-220-3	30 V	TO-220-3	Through Hole	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	15 V
Texas Instruments UA7812CKTTR	1.5 A	Positive	1.81 mOhm	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	30 V	TO-263 (DDPAK-3)	Surface Mount	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	12 V
Texas Instruments UA7810CKCSE3	1.5 A	Positive	1.81 mOhm	TO-220-3	28 V	TO-220-3	Through Hole	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	10 V
Texas Instruments UA7805CKC	1.5 A	Positive	1.81 mOhm	TO-220-3	25 V	TO-220-3	Through Hole	125 °C	Over Temperature Reverse Polarity	2 V		1	5 V	68 dB	78 dB
Texas Instruments UA7812CKCSE3	1.5 A	Positive	1.81 mOhm	TO-220-3	30 V	TO-220-3	Through Hole	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	12 V
Texas Instruments UA7810CKTTRG3	1.5 A	Positive	1.81 mOhm	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	28 V	TO-263 (DDPAK-3)	Surface Mount	125 °C	Over Current Over Temperature Reverse Polarity Short Circuit	2 V	78 dB	1	10 V
Texas Instruments UA7808CKCSE3	1.5 A	Positive	1.81 mOhm	TO-220-3	25 V	TO-220-3	Through Hole	125 °C	Over Temperature Reverse Polarity	2 V		1	8 V

Catalog

1.5-A, 38-V, linear voltage regulator

Key Features

• 3-Terminal RegulatorsAvailable in fixed 5-V/8-V/10-V/12-V/15-V/24-V optionsOutput Current up to 1.5 AInternal Thermal-Overload ProtectionHigh Power-Dissipation CapabilityInternal Short-Circuit Current LimitingOutput Transistor Safe-Area CompensationOutput Capacitor Not Needed for Stability3-Terminal RegulatorsAvailable in fixed 5-V/8-V/10-V/12-V/15-V/24-V optionsOutput Current up to 1.5 AInternal Thermal-Overload ProtectionHigh Power-Dissipation CapabilityInternal Short-Circuit Current LimitingOutput Transistor Safe-Area CompensationOutput Capacitor Not Needed for Stability

Description

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators. This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
