LM25005 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 5V OUTPUT EVALUATION BOARD
| Part | Main Purpose | Supplied Contents | Regulator Topology | Outputs and Type | Outputs and Type | Frequency - Switching | Utilized IC / Part | Current - Output | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DC/DC Step Down | Board(s) | Buck | Non-Isolated | 1 | 300 kHz | LM25005 | 2.5 A | 5 V | 7 V | 42 V | Fully Populated |

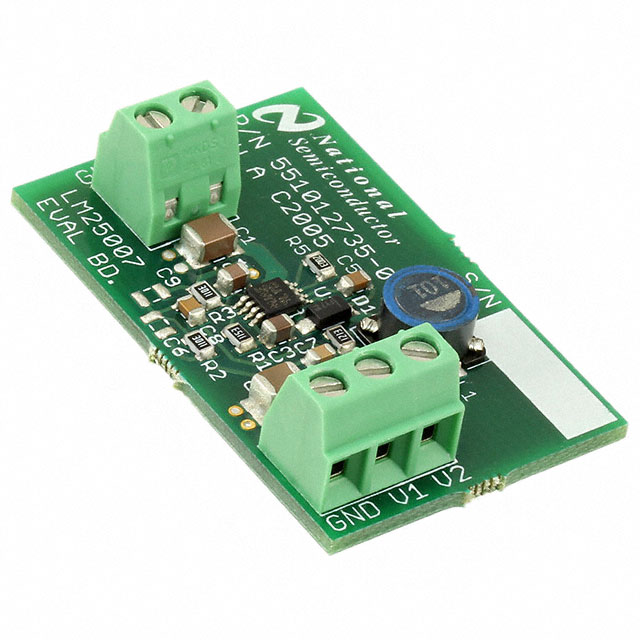

 Texas Instruments | DC/DC Step Down | Board(s) | Buck | Non-Isolated | 1 | 306 kHz | LM25007 | 450 mA | 5 V | 9 VDC | 42 V | Fully Populated |
