EGC.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Primary Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Shielding	Shell Material	Orientation	Material Flammability Rating	Fastening Type	Number of Positions	Shell Finish	Mounting Feature	Mounting Type	Color	Shell Size - Insert	Connector Type	Insert Material	Termination
LEMO EGC.0B.304.CLL	Metal	7 A	1.5 Ám	59 Áin	IP50 - Dust Protected	-55 C	250 °C	Bronze	Gold	Shielded	Brass	C	UL94 V-0	Push-Pull	4	Chrome	Bulkhead - Rear Side Nut	Panel Mount	Silver	304	Receptacle Female Sockets	Polyetheretherketone (PEEK)
LEMO EGC.0B.302.CLL	Metal	10 A	1.5 Ám	59 Áin	IP50 - Dust Protected	-55 C	250 °C	Bronze	Gold	Shielded	Brass	C	UL94 V-0	Push-Pull	2	Chrome	Bulkhead - Rear Side Nut	Panel Mount	Silver	302	Receptacle Female Sockets	Polyetheretherketone (PEEK)

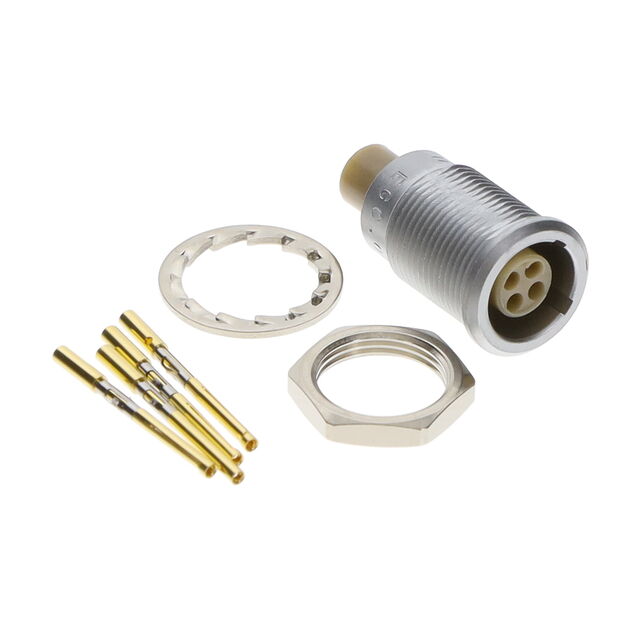

LEMO EGC.0B.304.CYM	Metal	7 A	1.5 Ám	59 Áin	IP50 - Dust Protected	-55 C	250 °C	Bronze	Gold	Shielded	Brass	C	UL94 V-0	Push-Pull	4	Chrome	Bulkhead - Rear Side Nut	Panel Mount	Silver	304	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Crimp
LEMO EGC.0B.309.CLL	Metal	2 A	1.5 Ám	59 Áin	IP50 - Dust Protected	-55 C	250 °C	Bronze	Gold	Shielded	Brass	C	UL94 V-0	Push-Pull	9	Chrome	Bulkhead - Rear Side Nut	Panel Mount	Silver	309	Receptacle Female Sockets	Polyetheretherketone (PEEK)
