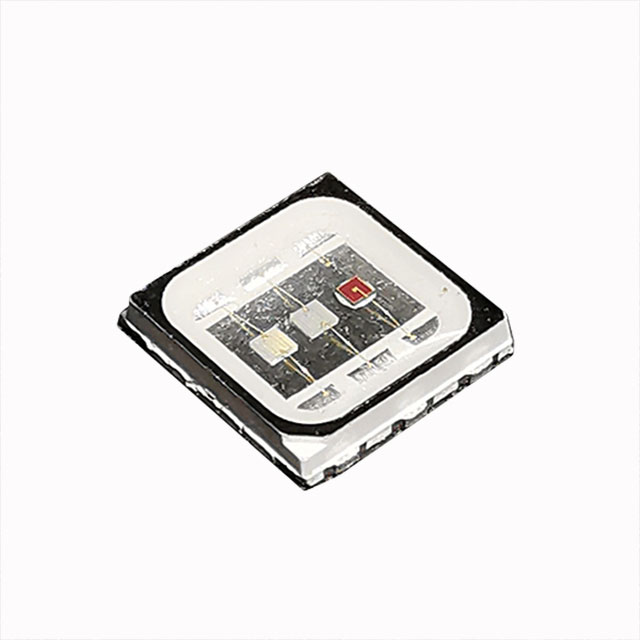

QBHP688 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K
LED RGB 620NM/525NM/465NM 6PLCC
| Part | Temperature - Test | Voltage - Forward (Vf) (Typ) | Height - Seated (Max) [Max] | Height - Seated (Max) | Current - Max [custom] | Current - Max [custom] | Current - Max [custom] | Viewing Angle | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Color | Supplier Device Package | Wavelength [custom] | Wavelength [custom] | Wavelength [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | 25 °C | 2.4 V 3.1 V 3.5 V | 0.059 " | 1.5 mm | 160 mA | 160 mA | 160 mA | 120 ° | 17 lm/W 36 lm/W 53 lm/W | 8 lm | 13 lm | 28 lm | 6-SMD J-Lead | 0.197 in | 0.197 " | 5 mm | 5 mm | Surface Mount | 150 mA | 150 mA | 150 mA | Blue Green Red | 6-PLCC | 620 nm | 465 nm | 525 nm |
