KSA1M3 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Illumination	Actuator Type	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Outline [x]	Outline [y]	Actuator Orientation	Contact Rating @ Voltage	Features	Mechanical Life	Switch Travel	Switch Function	Operating Force	Termination Style	Actuator Height off PCB, Vertical [z]

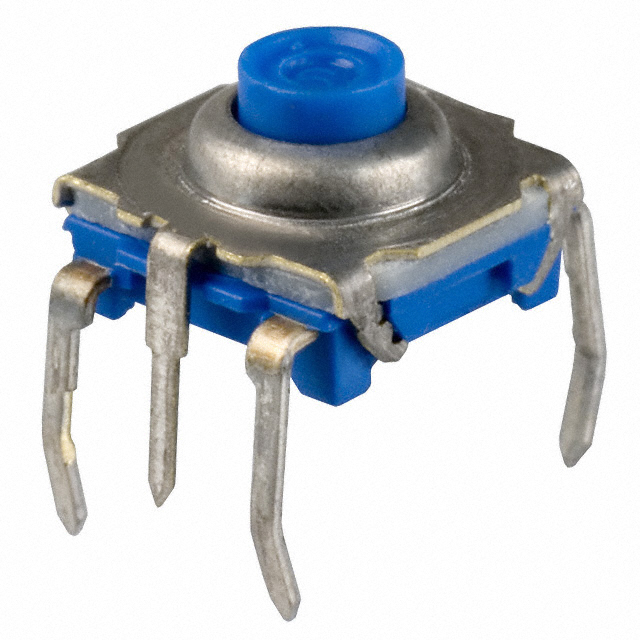

Littelfuse/Commercial Vehicle Products KSA1M311	Non-Illuminated	Standard	IP60	Through Hole	90 °C	-40 °C	SPST-NO	7.4 mm	7.4 mm	Top Actuated	0.05 A	Grounding Pin	1000000 Cycles	0.5 mm	Off-Mom	130 gf	PC Pin	4.7 mm
Littelfuse/Commercial Vehicle Products KSA1M311LFT	Non-Illuminated	Standard	IP60	Through Hole	90 °C	-40 °C	SPST-NO	7.4 mm	7.4 mm	Top Actuated	0.05 A	Grounding Pin	1000000 Cycles	0.5 mm	Off-Mom	130 gf	PC Pin	4.7 mm
Littelfuse/Commercial Vehicle Products KSA1M311 LFTR	Non-Illuminated	Standard	IP60	Through Hole	90 °C	-40 °C	SPST-NO	7.4 mm	7.4 mm	Top Actuated	0.05 A	Grounding Pin	1000000 Cycles	0.5 mm	Off-Mom	130 gf	PC Pin	4.7 mm

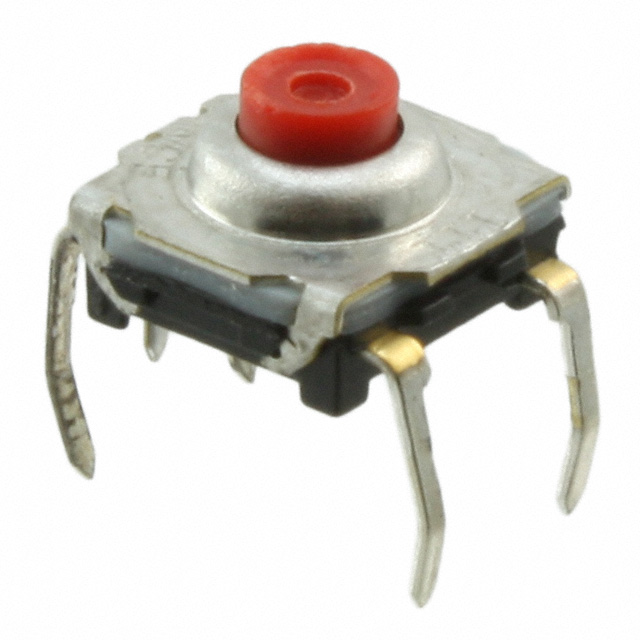

Littelfuse/Commercial Vehicle Products KSA1M331LFT	Non-Illuminated	Standard	IP60	Through Hole	125 °C	-40 °C	SPST-NO	7.4 mm	7.4 mm	Top Actuated	0.01 A 32 VDC	Grounding Pin	1000000 Cycles	0.5 mm	Off-Mom	130 gf	PC Pin	4.7 mm
