SSL2102 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC LED DRIVER OFFL TRIAC 2A 20SO
| Part | Number of Outputs | Topology | Package Length | Package Name | Package Width | Type | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Min) | Internal Switch(s) | Frequency | Current - Output / Channel | Voltage - Supply (Max) | Dimming | Supplied Contents | Utilized IC / Part | Voltage - Output (Max) | Voltage - Output (Min) | Isolated Output Count | Output Type | Total Output Count | Features | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 1 | Flyback Step-Down (Buck) | 0.295 in | 20-SO 20-SOIC | 7.5 mm | AC DC Offline Switcher | Surface Mount | -40 °C | 100 °C | 8.5 V | Yes | 100 kHz | 2 A | 40 V | TRIAC | |||||||||||

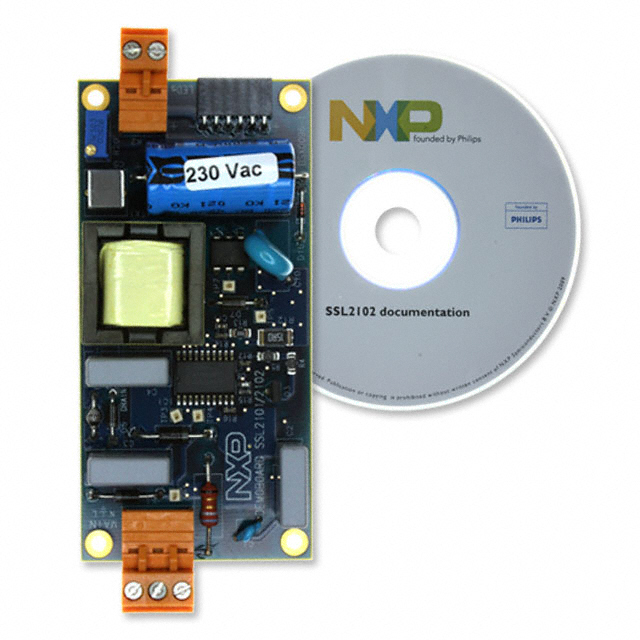

 NXP USA Inc. | 1.05 A | Board(s) | SSL2102 | 23 V | 9 V | 1 | Isolated | 1 | Dimmable | 85 VAC | 276 VAC | Board |
