6381 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

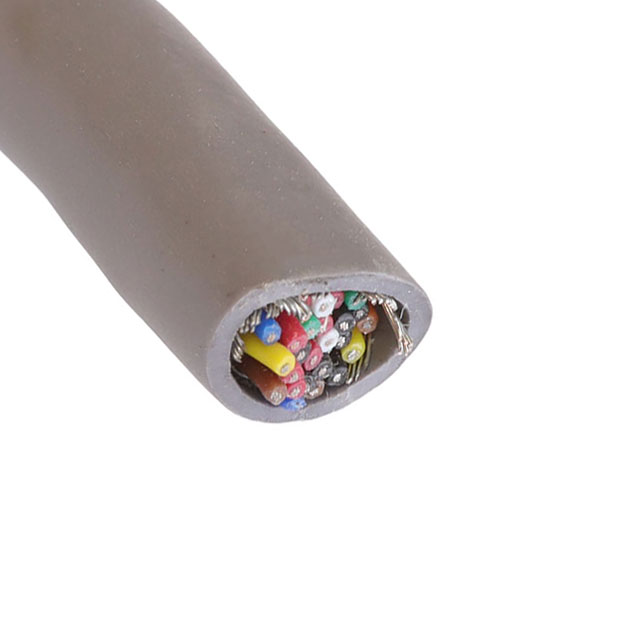

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 12 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Voltage | Features | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Insulation | Shield Type | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Drain Wire | Copper Tinned | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 25 | Slate | Multi-Pair | 0.813 mm | 0.032 in | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Braid Foil | 22 AWG | 80 °C | -20 ░C | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Drain Wire | Copper Tinned | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 25 | Slate | Multi-Pair | 0.813 mm | 0.032 in | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Braid Foil | 22 AWG | 80 °C | -20 ░C | 152.4 m | 500 ft | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Drain Wire | Copper Tinned | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 25 | Slate | Multi-Pair | 0.813 mm | 0.032 in | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Braid Foil | 22 AWG | 80 °C | -20 ░C | 100 ft | 30.5 m |
