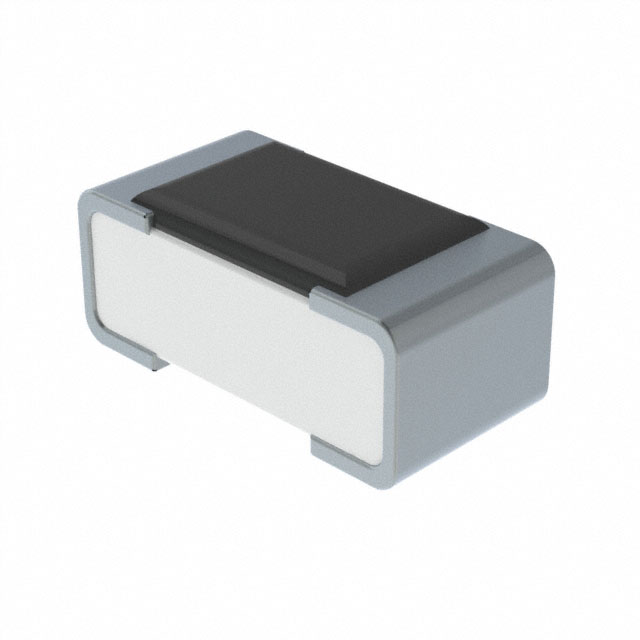

SR731H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

CURRENT SENSE RESISTOR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Supplier Device Package	Number of Terminations [custom]	Features	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient [Max]	Tolerance	Resistance	Composition
KOA Speer Electronics, Inc. SR731HTTC6R8J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	6.8 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC5R1J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	5.1 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTCR62J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	620 mOhms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC6R2J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	6.2 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC4R70F	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	1 %	4.7 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTCR27J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	270 mOhms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC4R3J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	4.3 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC7R5J	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	5 %	7.5 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC10R0F	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	1 %	10 Ohms	Thick Film
KOA Speer Electronics, Inc. SR731HTTC9R10F	-55 C	125 °C	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	Automotive AEC-Q200 Current Sense Moisture Resistant	0.1 W	0.1 W	0.01 in	0.26 mm	400 ppm/°C	1 %	9.1 Ohms	Thick Film
