DA45C Series

Catalog

ACDC WALL ADPT 5V/9V/15V/20V 45W

Part	Weight	Weight	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Region Utilized	Form	Voltage - Output	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Input Connector	Applications

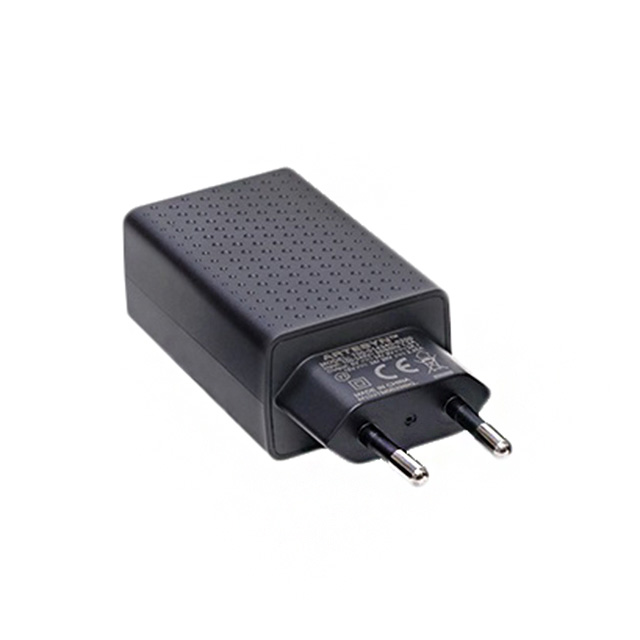

ARTESYN / Advanced Energy DA45C-J3WEU	85.28 g	0.188 lb	USB C Power Delivery (PD) USB C Receptacle	264 VAC	90 VAC	45 W	Fixed Blade	40 °C	0 °C	Level VI	Europe	Wall Mount	5 V 9 V 15 V 20 V	2.25 A 3 A	1.06 in	1.58 "	40.2 mm	27 mm	58 mm	2.28 "	CEE 7/16	ITE (Commercial)

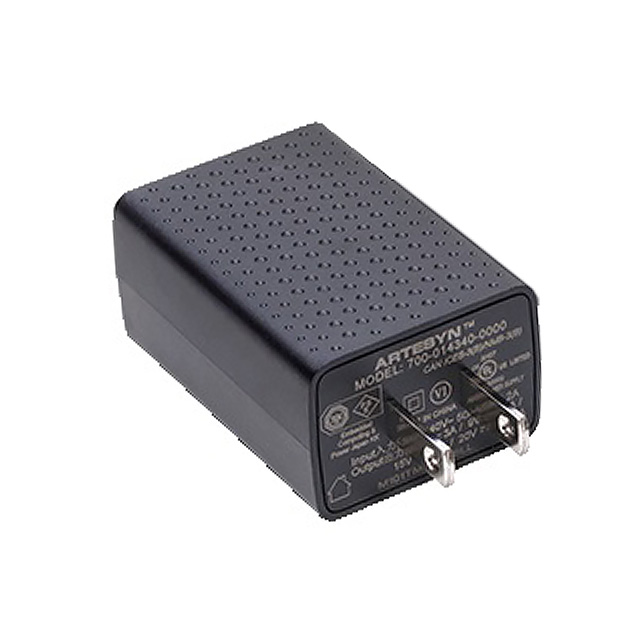

ARTESYN / Advanced Energy DA45C-J3WUS	85.28 g	0.188 lb	USB C Power Delivery (PD) USB C Receptacle	264 VAC	90 VAC	45 W	Fixed Blade	40 °C	0 °C	Level VI	North America	Wall Mount	5 V 9 V 15 V 20 V	2.25 A 3 A	1.06 in	1.58 "	40.2 mm	27 mm	58 mm	2.28 "	NEMA 1-15P	ITE (Commercial)
