M5402 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

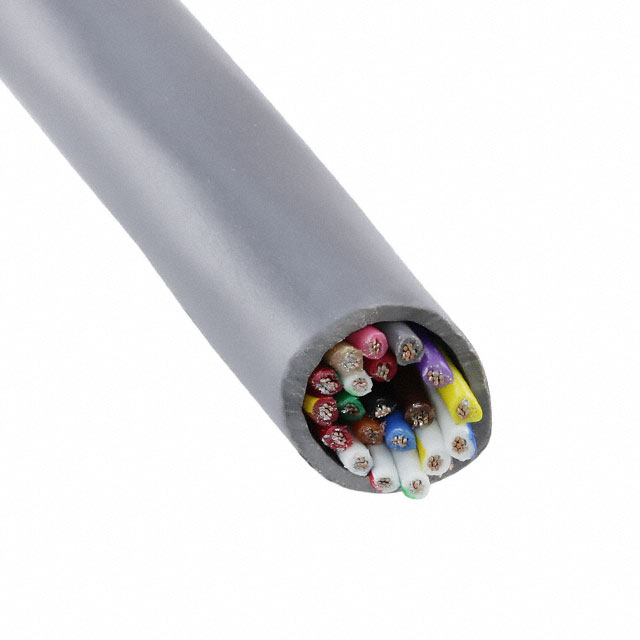

CABLE 20COND 18AWG SHLD 100'
| Part | Shield Coverage | Shield Material | Wire Gauge | Ratings | Conductor Material | Number of Conductors | Jacket Color | Features | Shield Type | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 18 AWG | UL Style 2464 | Copper Tinned | 20 | Slate | Drain Wire Rip Cord | Braid Foil | 300 VDC | 80 °C | -20 ░C | Multi-Conductor | 100 ft | 30.5 m | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 0.507 in | 12.88 mm | 0.813 mm | 0.032 in |
