ADS5407 Series

Catalog

DUAL-CHANNEL, 12-BIT, 500-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Number of Inputs	Ratio - S/H:ADC	Number of A/D Converters	Package / Case	Data Interface	Input Type	Reference Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits	Configuration	Architecture	Sampling Rate (Per Second)	Features	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Input Range	Supplied Contents	Utilized IC / Part	Power (Typ) @ Conditions

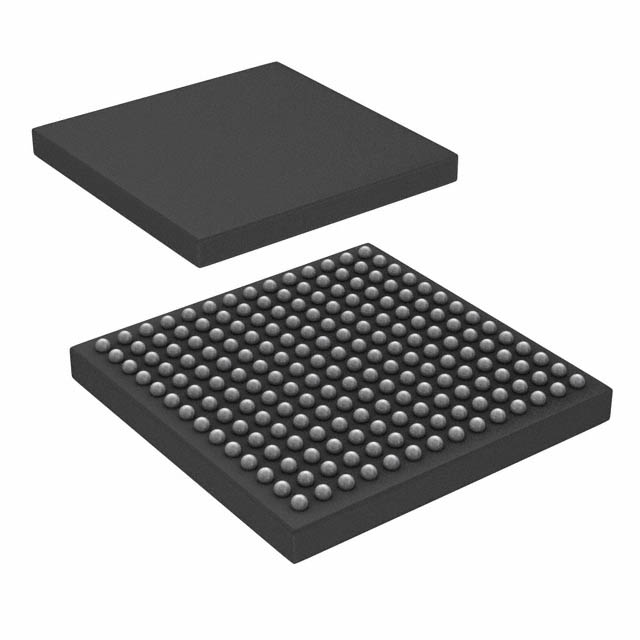

Texas Instruments ADS5407IZAY	2	1:1	2	196-LFBGA	LVDS - Parallel	Differential	External Internal	Surface Mount	85 °C	-40 °C	12 bits	S/H-ADC	Pipelined	500 M	Simultaneous Sampling	1.7 V	1.9 V	1.7 V 3.15 V	1.9 V 3.45 V

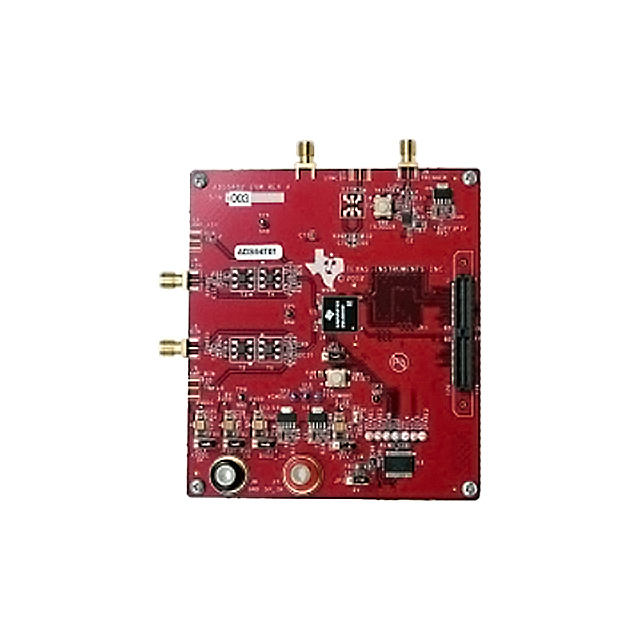

Texas Instruments ADS5407EVM			2		DDR LVDS						12 bits			500 M						1 Vpp	Board(s)	ADS5407	1.35 W
Texas Instruments ADS5407IZAYR	2	1:1	2	196-LFBGA	LVDS - Parallel	Differential	External Internal	Surface Mount	85 °C	-40 °C	12 bits	S/H-ADC	Pipelined	500 M	Simultaneous Sampling	1.7 V	1.9 V	1.7 V 3.15 V	1.9 V 3.45 V
