G3B15AP Series

Catalog

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Actuator Type	Type	Features	Actuator Marking
NKK Switches G3B15AP-S-XB	50000 Cycles	50000 Cycles	85 °C	-30 ░C	On-Mom	White	SPDT	0.4 VA	Surface Mount	28 V	Gull Wing	28 V	Button Round	Standard	Process Sealed	No Marking

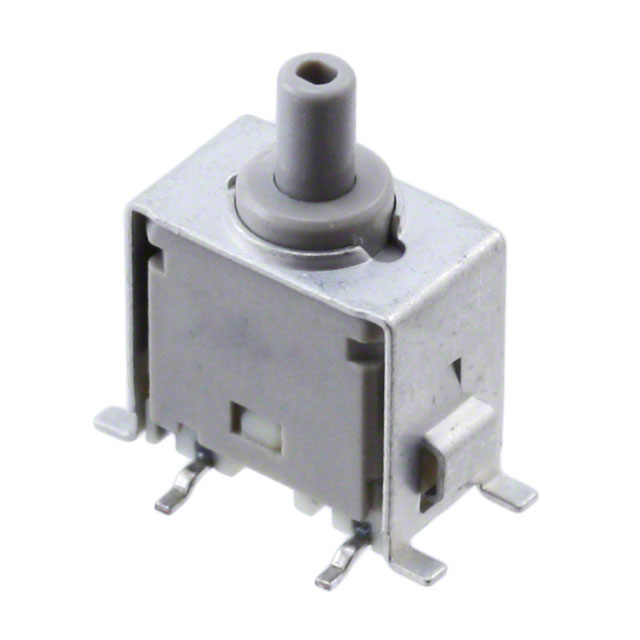

NKK Switches G3B15AP-S	50000 Cycles	50000 Cycles	85 °C	-30 ░C	On-Mom		SPDT	0.4 VA	Surface Mount	28 V	Gull Wing	28 V	Plunger Round	Standard	Process Sealed	No Marking
NKK Switches G3B15AP-S-YA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	On-Mom	Black	SPDT	0.4 VA	Surface Mount	28 V	Gull Wing	28 V	Button Round	Standard	Process Sealed	No Marking
