ETMA120500 Series

Manufacturer: CUI Inc.

Catalog

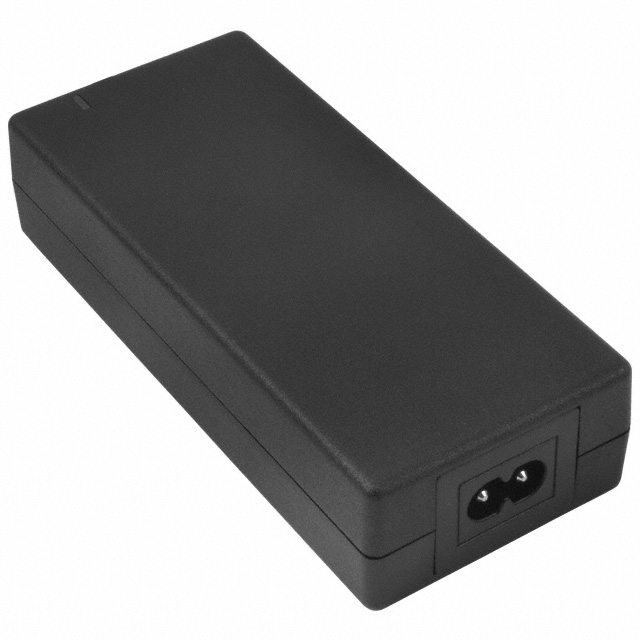

AC/DC DESKTOP ADAPTER 12V 60W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Voltage - Output	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Current - Output (Max)	No Load Power Consumption	Approval Agency	Polarization	Standard Number	Form	Efficiency	Input Type	Input Connector	Cord Length	Cord Length	Weight	Weight	Power (Watts)	Output Connector [diameter]	Output Connector [x]
CUI Inc. ETMA120500UD-P5RP-IC	5.2 in	58 mm	2.28 in	30.5 mm	1.2 "	132 mm	40 °C	12 V	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	Medical	264 VAC	90 VAC	International	5 A	300 mW	EN FCC SIQ TUV UL	Positive Center	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Desktop (Class II)	Level V	Cord (Sold Separately)	IEC 320-C8	720 mm	28.35 in	345.18 g	0.761 lb	60 W
CUI Inc. ETMA120500UD-P5P-IC	5.2 in	58 mm	2.28 in	30.5 mm	1.2 "	132 mm	40 °C	12 V		Barrel Plug			Medical	264 VAC	90 VAC	International	5 A	300 mW	EN FCC SIQ TUV UL	Positive Center	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Desktop (Class II)	Level V	Cord (Sold Separately)	IEC 320-C8	720 mm	28.35 in	345.18 g	0.761 lb	60 W	2.1 mm 5.5 mm	9.5 mm
CUI Inc. ETMA120500UD-P6P-IC	5.2 in	58 mm	2.28 in	30.5 mm	1.2 "	132 mm	40 °C	12 V		Barrel Plug			Medical	264 VAC	90 VAC	International	5 A	300 mW	EN FCC SIQ TUV UL	Positive Center	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Desktop (Class II)	Level V	Cord (Sold Separately)	IEC 320-C8	720 mm	28.35 in	345.18 g	0.761 lb	60 W	2.5 mm 5.5 mm	9.5 mm
