65007CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

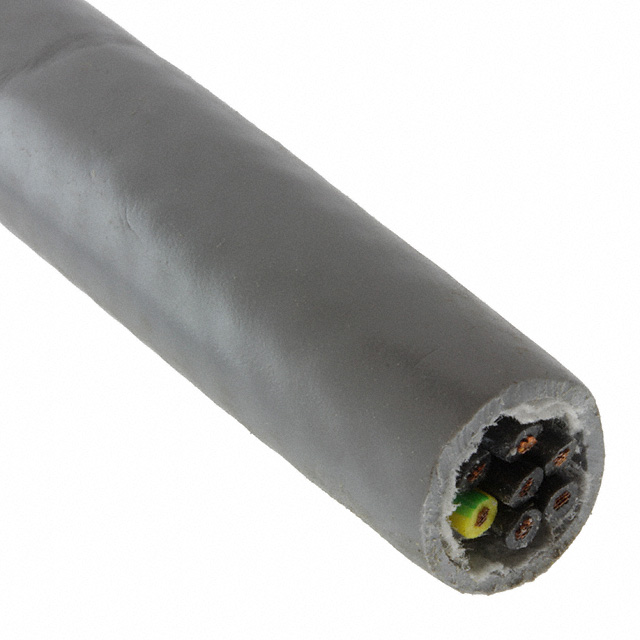

CABLE 7COND 20AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Ratings | Conductor Insulation | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | Copper Bare | 600 V | 10 | 30 AWG | Biological Compatibility | Braid | 0.035 in | 0.889 mm | Multi-Conductor | 100 ft | 30.5 m | 20 AWG | Poly-Vinyl Chloride (PVC) | 7 | 0.409 " | 10.39 mm | Slate | ||
ALPHA WIRE | Copper Tinned | 85 % | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | Copper Bare | 600 V | 10 | 30 AWG | Biological Compatibility | Braid | 0.035 in | 0.889 mm | Multi-Conductor | 20 AWG | Poly-Vinyl Chloride (PVC) | 7 | 0.409 " | 10.39 mm | Slate | 152.4 m | 500 ft |
