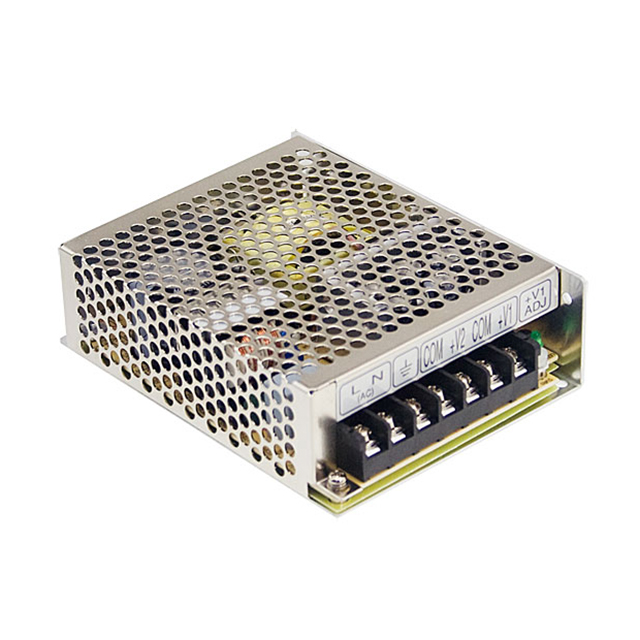

RS-75 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 77W
| Part | Minimum Load Required | Voltage - Isolation | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | Mounting Type | Power (Watts) | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Output 1 | Features | Current - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | Enclosed | 3.82 in | 97 mm | 38 mm | 129 mm | 1.5 in | 5.08 " | ITE (Commercial) | Chassis Mount | 77 W | 1 | 88 VAC 125 VDC | 264 VAC 373 VDC | 70 °C | -25 °C | CB CE cURus TUV | 48 V | Adjustable Output Universal Input | 1.6 A | ||
MEAN WELL USA Inc. | 3000 V | Enclosed | 3.82 in | 97 mm | 38 mm | 129 mm | 1.5 in | 5.08 " | ITE (Commercial) | Chassis Mount | 75 W | 1 | 88 VAC 125 VDC | 264 VAC 373 VDC | 70 °C | -25 °C | CB CE cURus TUV | 15 V | Adjustable Output Universal Input | 5 A | 86 % | |
MEAN WELL USA Inc. | 3000 V | Enclosed | 3.82 in | 97 mm | 38 mm | 129 mm | 1.5 in | 5.08 " | ITE (Commercial) | Chassis Mount | 72 W | 1 | 88 VAC 125 VDC | 264 VAC 373 VDC | 70 °C | -25 °C | CB CE cURus TUV | 12 V | Adjustable Output Universal Input | 6 A | 84.5 % | |
MEAN WELL USA Inc. | 3000 V | Enclosed | 3.82 in | 97 mm | 38 mm | 129 mm | 1.5 in | 5.08 " | ITE (Commercial) | Chassis Mount | 77 W | 1 | 88 VAC 125 VDC | 264 VAC 373 VDC | 70 °C | -25 °C | CB CE cURus TUV | 24 V | Adjustable Output Universal Input | 3.2 A | 88.5 % |
