M2029BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Illumination | Actuator Length [x] | Voltage Rating - DC | Bushing Thread | Termination Style | Switch Function | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Features | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

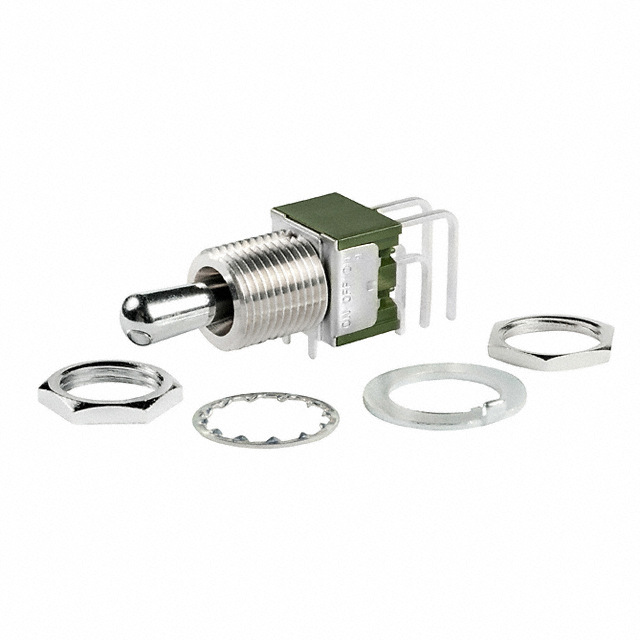

 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | 11.5 mm | 30 V | M12 x 1 | PC Pin | On-Off-Mom | 125 V | 12.5 mm | Standard Round | 85 °C | -30 ░C | Panel Mount Right Angle Vertical | DPDT | Epoxy Sealed Terminals | 3 A 6 A | |

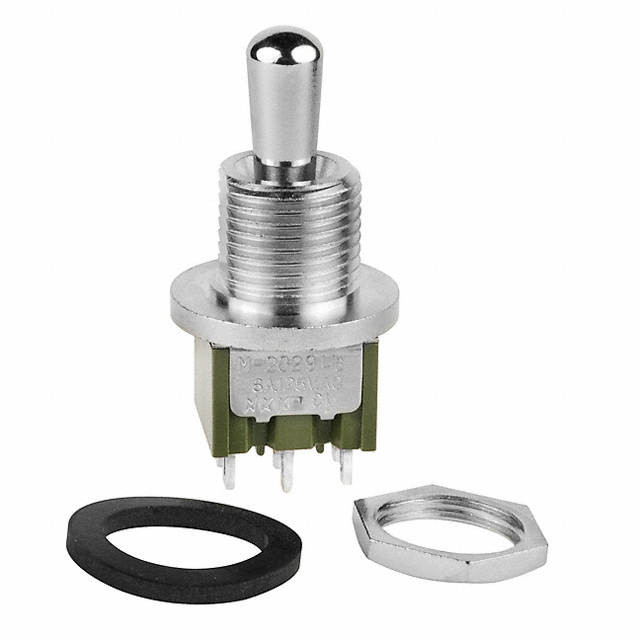

 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | 11.5 mm | 30 V | M12 x 1 | Solder Lug | On-Off-Mom | 125 V | 12.5 mm | Standard Round | 85 °C | -30 ░C | Panel Mount | DPDT | Epoxy Sealed Terminals | 3 A 6 A | IP67 - Dust Tight Waterproof |
