306-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 40POS 0.156

Part	Material - Insulation	Termination Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Number of Positions/Bay/Row	Read Out	Gender	Features	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Pitch	Pitch	Termination	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-020-520-168	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female	Card Guides	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	4-40 Flush Mount Threaded Insert Top Opening

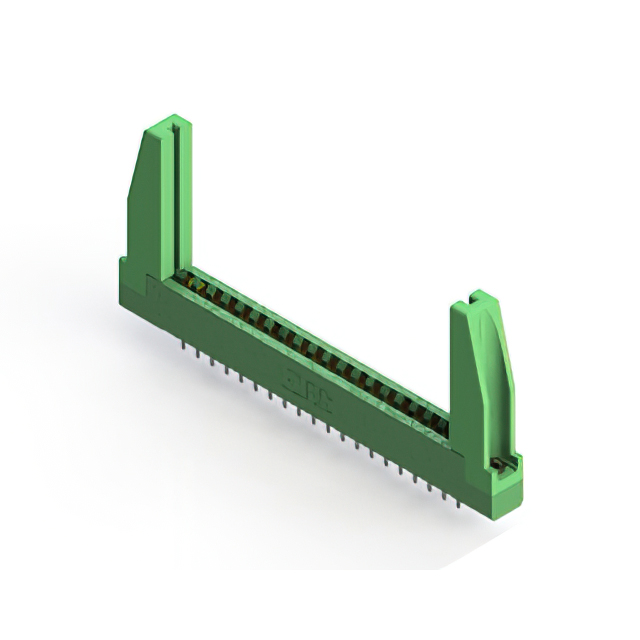

EDAC Inc. 306-020-520-178	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female	Card Guides	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-020-521-104	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

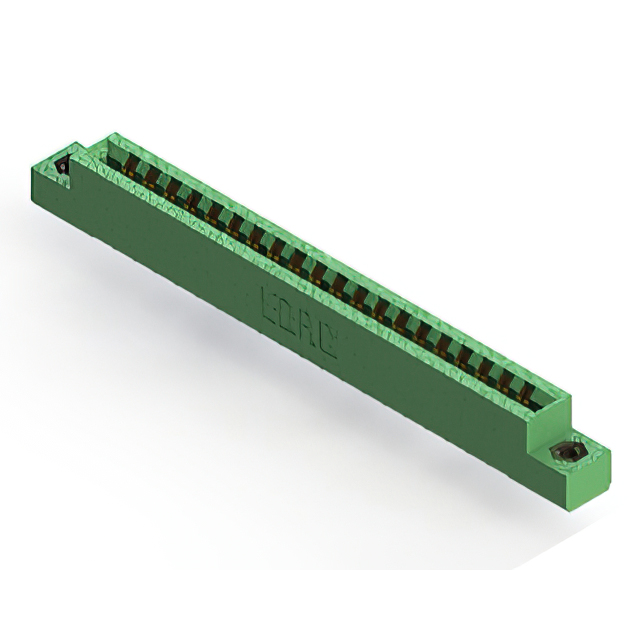

EDAC Inc. 306-020-521-108	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-020-500-112	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 306-020-420-178	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female	Card Guides	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge			Tin	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-020-420-104	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge			Tin	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

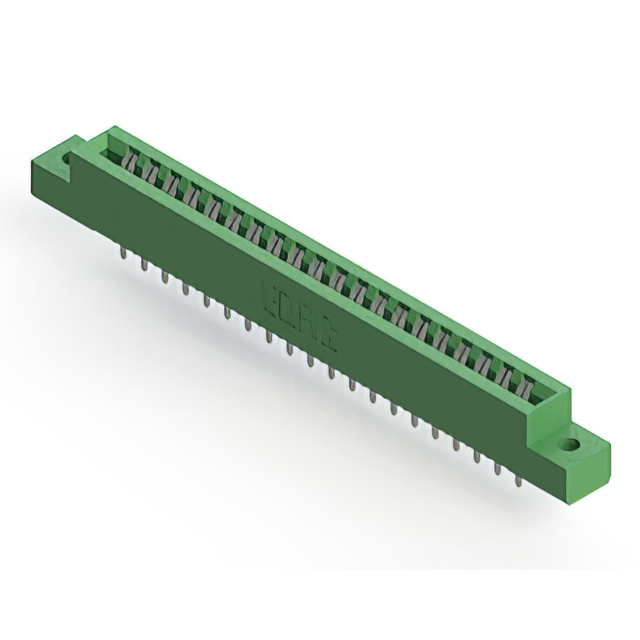

EDAC Inc. 306-020-420-102	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge			Tin	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm

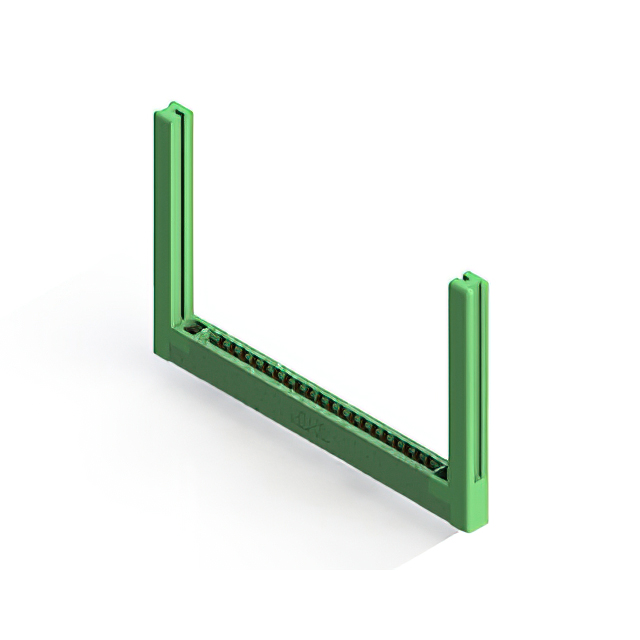

EDAC Inc. 306-020-521-158	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female	Card Guides	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	Gold	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-020-400-112	Polyester Thermoplastic	1	Green	-40 C	105 ░C	40	Cantilever	20 Bay/Row	Dual	Female		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge			Tin	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
