LM74 Series

±1.25°C Temperature Sensor with SPI Interface

Catalog

±1.25°C Temperature Sensor with SPI Interface

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Mounting Type	Resolution	Package / Case	Package / Case [y]	Package / Case [x]	Accuracy - Highest (Lowest)	Sensor Type	Supplier Device Package	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Test Condition [Max]	Test Condition [Max]	Test Condition [Min]	Test Condition [Min]
Texas Instruments LM74CIMX-5	-55 °C	150 °C	SPI	5.5 V	3 V	Shutdown Mode	Surface Mount	12 b	8-SOIC	3.9 mm	0.154 in	1.25 °C	Digital Local	8-SOIC	150 °C	-55 ¯C
Texas Instruments LM74CIM-3/NOPB	-55 °C	150 °C	SPI	5.5 V	3 V	Shutdown Mode	Surface Mount	12 b	8-SOIC	3.9 mm	0.154 in	1.25 °C	Digital Local	8-SOIC	150 °C	-55 ¯C

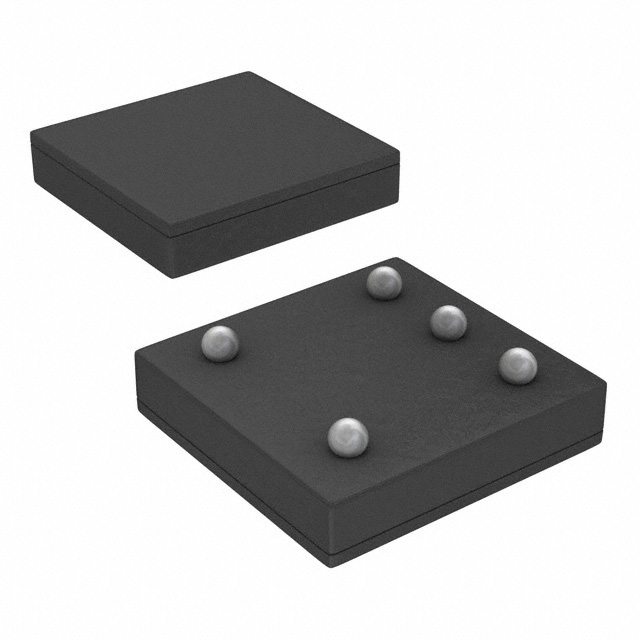

Texas Instruments LM74CITP-3/NOPB	-40 °C	125 °C	SPI	5.5 V	2.65 V	Shutdown Mode	Surface Mount	12 b	5-UFBGA DSBGA			1.25 °C	Digital Local	5-DSBGA	125 °C	-40 °C	110 °C	65 °C	-40 °C	-10 °C
Texas Instruments LM74CIM-5	-55 °C	150 °C	SPI	5.5 V	3 V	Shutdown Mode	Surface Mount	12 b	8-SOIC	3.9 mm	0.154 in	1.25 °C	Digital Local	8-SOIC	150 °C	-55 ¯C
Texas Instruments LM74CITPX-3/NOPB	-40 °C	125 °C	SPI	5.5 V	2.65 V	Shutdown Mode	Surface Mount	12 b	5-UFBGA DSBGA			1.25 °C	Digital Local	5-DSBGA	125 °C	-40 °C	110 °C	65 °C	-40 °C	-10 °C
Texas Instruments LM74CITPX-5/NOPB	-40 °C	125 °C	SPI	5.5 V	2.65 V	Shutdown Mode	Surface Mount	12 b	5-UFBGA DSBGA			1.25 °C	Digital Local	5-DSBGA	125 °C	-40 °C	110 °C	65 °C	-40 °C	-10 °C
Texas Instruments LM74CITP-5/NOPB	-40 °C	125 °C	SPI	5.5 V	2.65 V	Shutdown Mode	Surface Mount	12 b	5-UFBGA DSBGA			1.25 °C	Digital Local	5-DSBGA	125 °C	-40 °C	110 °C	65 °C	-40 °C	-10 °C
Texas Instruments LM74CIMX-3/NOPB	-55 °C	150 °C	SPI	5.5 V	3 V	Shutdown Mode	Surface Mount	12 b	8-SOIC	3.9 mm	0.154 in	1.25 °C	Digital Local	8-SOIC	150 °C	-55 ¯C
Texas Instruments LM74CIM-3	-55 °C	150 °C	SPI	5.5 V	3 V	Shutdown Mode	Surface Mount	12 b	8-SOIC	3.9 mm	0.154 in	1.25 °C	Digital Local		150 °C	-55 ¯C
Texas Instruments LM74CIBP-3	-40 °C	125 °C	SPI	5.5 V	2.65 V	Shutdown Mode	Surface Mount	12 b	5-UFBGA DSBGA			1.25 °C	Digital Local	5-DSBGA	125 °C	-40 °C	110 °C	65 °C	-40 °C	-10 °C

Catalog

±1.25°C Temperature Sensor with SPI Interface

Key Features

• 0.0625°C Temperature ResolutionShutdown Mode Conserves Power Between Temperature ReadingSPI and MICROWIRE Bus Interface5-Bump DSBGA Package Saves SpaceKey SpecificationsSupply Voltage 3.0V or 2.65V to 5.5VSupply CurrentOperating265μA (typ)520μA (max)Shutdown3μA (typ)Temperature Accuracy−10°C to 65°C, ±1.25°C(max)−25°C to 110°C, ±2.1°C(max)−55°C to 125°C, ±3°C(max)All trademarks are the property of their respective owners.0.0625°C Temperature ResolutionShutdown Mode Conserves Power Between Temperature ReadingSPI and MICROWIRE Bus Interface5-Bump DSBGA Package Saves SpaceKey SpecificationsSupply Voltage 3.0V or 2.65V to 5.5VSupply CurrentOperating265μA (typ)520μA (max)Shutdown3μA (typ)Temperature Accuracy−10°C to 65°C, ±1.25°C(max)−25°C to 110°C, ±2.1°C(max)−55°C to 125°C, ±3°C(max)All trademarks are the property of their respective owners.

Description

The LM74 is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface. The host can query the LM74 at any time to read temperature. A shutdown mode decreases power consumption to less than 10 μA. This mode is useful in systems where low average power consumption is critical. The LM74 has 12-bit plus sign temperature resolution (0.0625°C per LSB) while operating over a temperature range of −55°C to +150°C. The LM74's 3.0V to 5.5V supply voltage range, low supply current and simple SPI interface make it ideal for a wide range of applications. These include thermal management and protection applications in hard disk drives, printers, electronic test equipment, and office electronics. The LM74 is available in the SOIC package as well as the 5-Bump DSBGA package. The LM74 is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface. The host can query the LM74 at any time to read temperature. A shutdown mode decreases power consumption to less than 10 μA. This mode is useful in systems where low average power consumption is critical. The LM74 has 12-bit plus sign temperature resolution (0.0625°C per LSB) while operating over a temperature range of −55°C to +150°C. The LM74's 3.0V to 5.5V supply voltage range, low supply current and simple SPI interface make it ideal for a wide range of applications. These include thermal management and protection applications in hard disk drives, printers, electronic test equipment, and office electronics. The LM74 is available in the SOIC package as well as the 5-Bump DSBGA package.
