PR20203VB Series

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Connector Type	Termination	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Contact Shape	Contact Material	Contact Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]

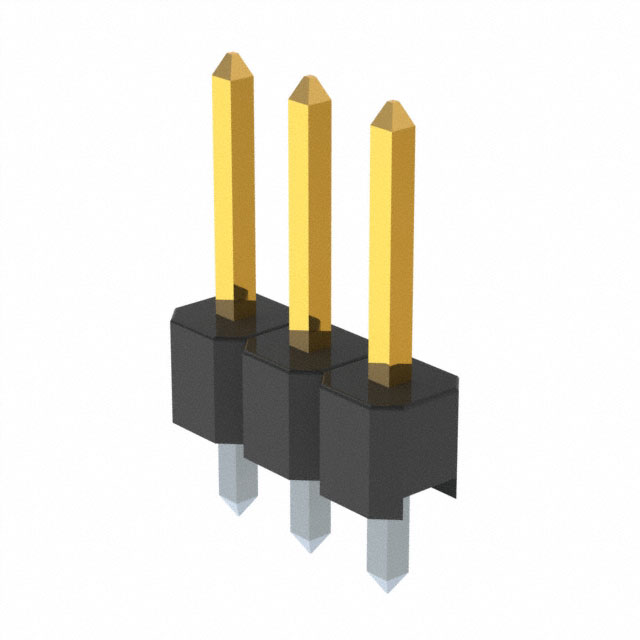

METZ CONNECT USA Inc. PR20203VBNN	Header	Solder	Unshrouded	Push-Pull	0.118 in	3 mm	0.1 "	2.54 mm	Flash	11.61 mm	0.457 in	Polyethylene	3 A	All	Square	Copper Zinc	Male Pin	Black	1	0.098 "	2.5 mm	Through Hole	-40 C	105 ░C	0.24 in	6.1 mm	Gold

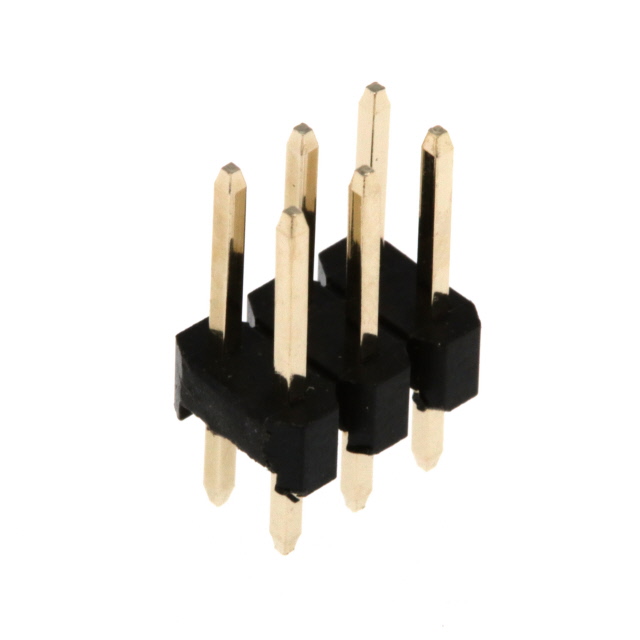

METZ CONNECT USA Inc. PR20203VBDN	Header	Solder	Unshrouded	Push-Pull	0.118 in	3 mm	0.1 "	2.54 mm	Flash	11.61 mm	0.457 in	Polyethylene		All	Square	Copper Zinc	Male Pin	Black		0.098 "	2.5 mm	Through Hole	-40 C	105 ░C	0.24 in	6.1 mm	Gold	6	2	0.1 in	2.54 mm
