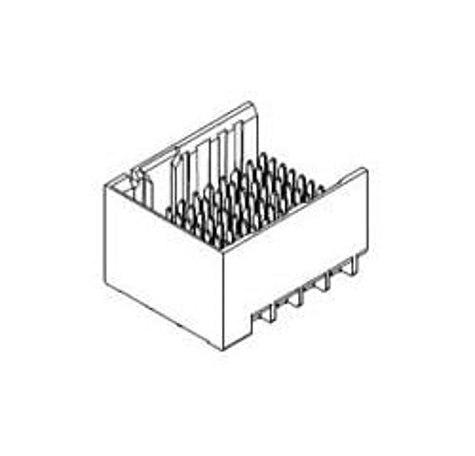

170525 Series
High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn
Manufacturer: Molex
Catalog
High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn
High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn
High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn
High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Rows | Contact Layout, Typical | Contact Finish Thickness | Contact Finish Thickness | Color | Connector Style | Connector Type | Termination | Contact Finish | Mounting Type | Number of Positions | Number of Columns | Number of Positions Loaded | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 36 Differential Pairs | 30 Áin | 0.76 Ám | Gray | Impact Guide Left | Header Male Pins | Press-Fit | Gold | Through Hole | 108 | 12 | All | |
Molex | 9 | 30 Áin | 0.76 Ám | Gray | Header Male Pins | Press-Fit | Gold | Through Hole | 72 | 8 | All | 24 Differential Pairs | ||||||
Molex | 9 | 30 Áin | 0.76 Ám | Gray | Header Male Pins | Press-Fit | Gold | Through Hole | 144 | 16 | All | 48 Differential Pairs | ||||||
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 36 Differential Pairs | 30 Áin | 0.76 Ám | Gray | Header Male Pins | Press-Fit | Gold | Through Hole | 108 | 12 | All | ||
Molex | 30 Áin | 0.76 Ám | Header Male Pins | Press-Fit | Gold | Through Hole | 16 | All | 48 Differential Pairs | |||||||||
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 30 Áin | 0.76 Ám | Gray | Header Male Pins | Press-Fit | Gold | Through Hole | 144 | 16 | All | 48 Differential Pairs | ||
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 30 Áin | 0.76 Ám | Gray | Impact | Header Male Pins | Press-Fit | Gold | Through Hole | 72 | 8 | All | 24 Differential Pairs | |
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 30 Áin | 0.76 Ám | Gray | Impact | Header Male Pins | Press-Fit | Gold | Through Hole | 72 | 8 | All | 24 Differential Pairs | |
Molex | 9 | 30 Áin | 0.76 Ám | Gray | Impact | Header Male Pins | Press-Fit | Gold | Through Hole | 72 | 8 | All | 24 Differential Pairs | |||||
Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 9 | 30 Differential Pairs | 30 Áin | 0.76 Ám | Gray | Impact | Header Male Pins | Press-Fit | Gold | Through Hole | 90 | 10 | All |
