78388 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

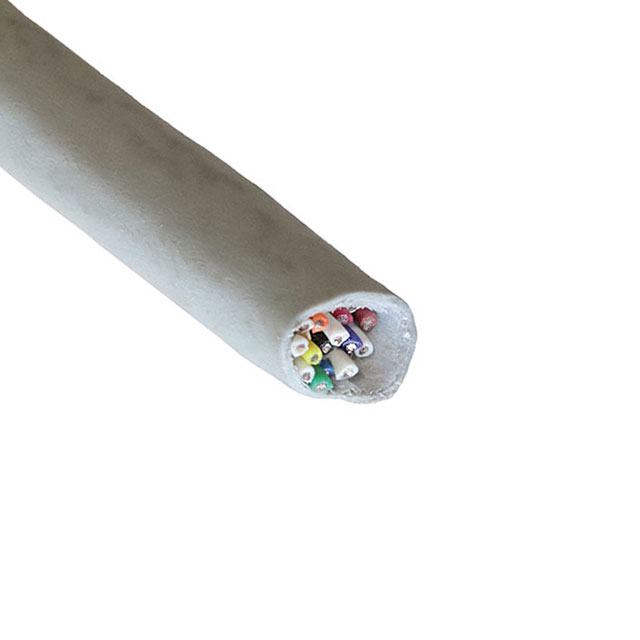

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 8 PAIR, 22 AWG, 0.382 MM², 1000 FT, 305 M
| Part | Shield Material | Shield Coverage | Cable Type | Length | Length | Voltage | Features | Ratings | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Multi-Pair | 304.8 m | 1000 ft | 300 VDC | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21460 | 22 AWG | 0.381 mm | 0.015 in | Copper Tinned | 16 | 8.03 mm | 0.316 " | Polyphenylene Ether Modified (mPPE) | 80 °C | -40 C | Slate | Polyphenylene Ether Modified (mPPE) | 34 AWG | 19 | Braid Foil | ||
ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Multi-Pair | 300 VDC | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21460 | 22 AWG | 0.381 mm | 0.015 in | Copper Tinned | 16 | 8.03 mm | 0.316 " | Polyphenylene Ether Modified (mPPE) | 80 °C | -40 C | Slate | Polyphenylene Ether Modified (mPPE) | 34 AWG | 19 | Braid Foil | 300 mm | 1 ' |
