3149-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

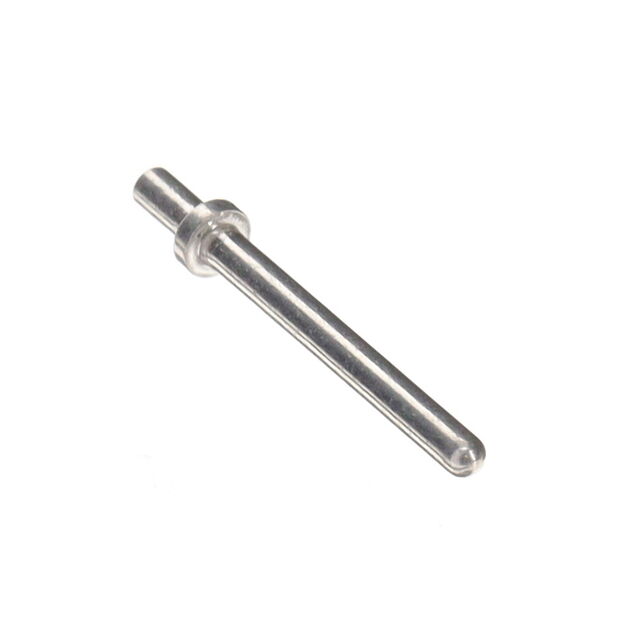

CONN PC PIN CIRC .040DIA GOLD
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Insulation | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 9.65 mm | 0.38 in | Through Hole | 2.08 mm | 0.082 " | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Swage | Non-Insulated | Single End | 1.77 mm | 0.07 in | Brass Alloy | PC Pin | 12.24 mm | 0.482 in | Gold | 50 µin | 1.27 µm |
 Mill-Max Manufacturing Corp. | 9.65 mm | 0.38 in | Through Hole | 2.08 mm | 0.082 " | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Swage | Non-Insulated | Single End | 1.77 mm | 0.07 in | Brass Alloy | PC Pin | 12.24 mm | 0.482 in | Tin-Lead | 200 Áin | 5.08 Ám |
 Mill-Max Manufacturing Corp. | 9.65 mm | 0.38 in | Through Hole | 2.08 mm | 0.082 " | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Swage | Non-Insulated | Single End | 1.77 mm | 0.07 in | Brass Alloy | PC Pin | 12.24 mm | 0.482 in | Gold | 10 Áin | 0.25 Ám |
 Mill-Max Manufacturing Corp. | 9.65 mm | 0.38 in | Through Hole | 2.08 mm | 0.082 " | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Swage | Non-Insulated | Single End | 1.77 mm | 0.07 in | Brass Alloy | PC Pin | 12.24 mm | 0.482 in | Gold | 20 µin | 0.51 µm |
