10082627 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

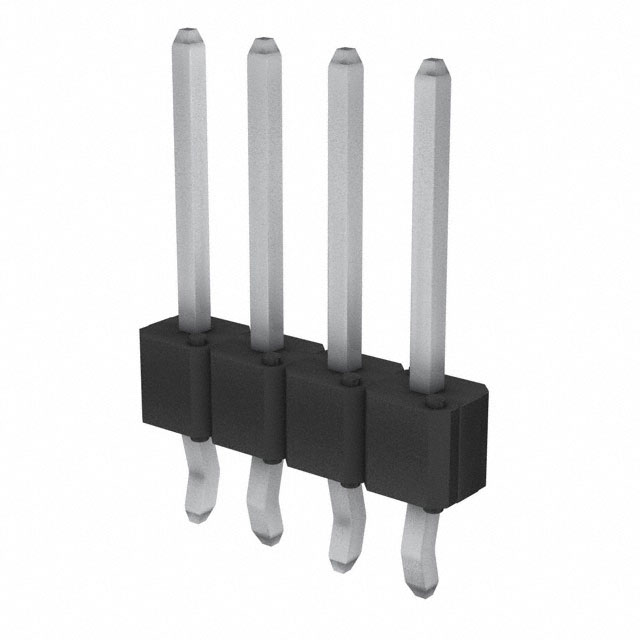

CONN HEADER VERT 4POS 2.54MM
| Part | Number of Positions | Overall Contact Length [x] | Overall Contact Length [x] | Insulation Color | Pitch - Mating | Pitch - Mating | Connector Type | Contact Shape | Fastening Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Finish - Post | Termination | Contact Type | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 4 | 13.67 mm | 0.538 in | Black | 0.1 " | 2.54 mm | Header Breakaway | Square | Push-Pull | 3.05 mm | 0.12 in | 0.1 in | 2.54 mm | 3 A | 8.08 mm | 0.318 in | Unshrouded | Phosphor Bronze | 130 °C | -65 ░C | All | Tin | Kinked Pin Solder | Male Pin | UL94 V-0 | 1 | 100 çin | 2.54 çm | Through Hole |
