SC003A0 Series

Catalog

DC DC CONVERTER 5V 15W

Part	Voltage - Output 1	Type	Number of Outputs	Efficiency	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Mounting Type	Control Features	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]

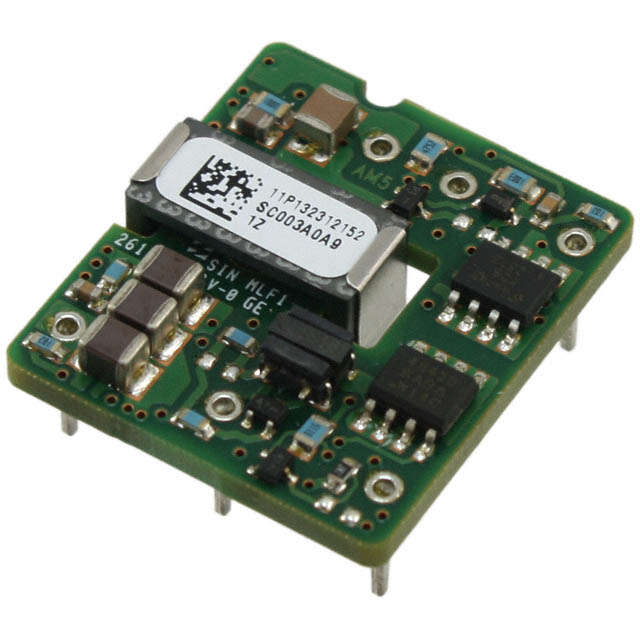

OmniOn Power™ SC003A0A91Z	5 V	Isolated Module	1	85.5 %	15 W	ITE (Commercial)	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	6-DIP Module	Through Hole	Active Low Enable	OCP OVP Remote On/Off UVLO	3 A	36 V	85 °C	-40 C	2250 VDC	18 V
OmniOn Power™ SC003A0A91Z	5 V	Isolated Module	1	85.5 %	15 W	ITE (Commercial)	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	6-DIP Module	Through Hole	Active Low Enable	OCP OVP Remote On/Off UVLO	3 A	36 V	85 °C	-40 C	2250 VDC	18 V
