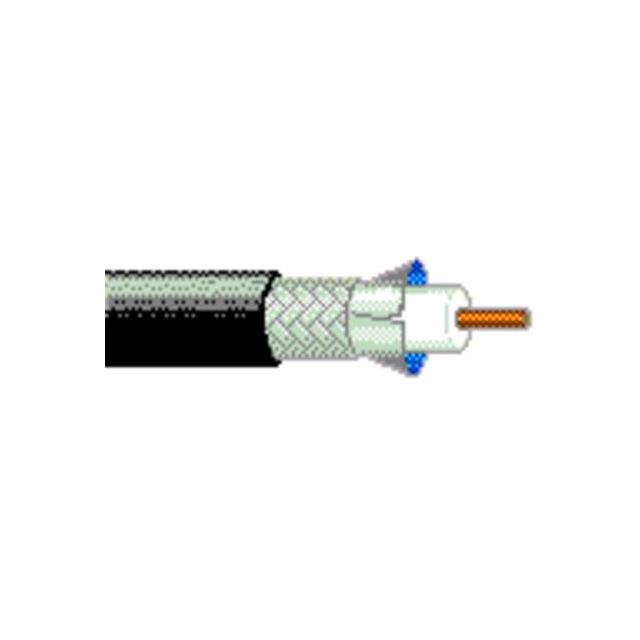

1371R Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX RG59 23AWG 75OHM
| Part | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Dielectric Material | Shield Type | Conductor Strand | Cable Group | Usage | Impedance | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 75 ░C | -30 ░C | 82 | 85 % 100 % | 2.59 mm | 0.102 in | Aluminum Copper Tinned | Foam High Density Polyethylene (FHDPE) | Braid Foil | Solid | RG-59 Mini | Analog Video | 75 Ohms | Brown | 4.06 mm | 0.16 in | Coaxial - Riser | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 23 AWG |
 Belden Inc. | Copper Bare | 75 ░C | -30 ░C | 82 | 85 % 100 % | 2.59 mm | 0.102 in | Aluminum Copper Tinned | Foam High Density Polyethylene (FHDPE) | Braid Foil | Solid | RG-59 Mini | Analog Video | 75 Ohms | Orange | 4.06 mm | 0.16 in | Coaxial - Riser | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 23 AWG |
