CBT-120 Series

Catalog

LED MOD CBT-120 BLUE SQUARE

Part	Type	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Voltage - Forward (Vf) (Typ)	Lens Type	Height [z]	Configuration	Current - Test	Features	Color	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Wavelength [Max]	Wavelength	Wavelength [Min]

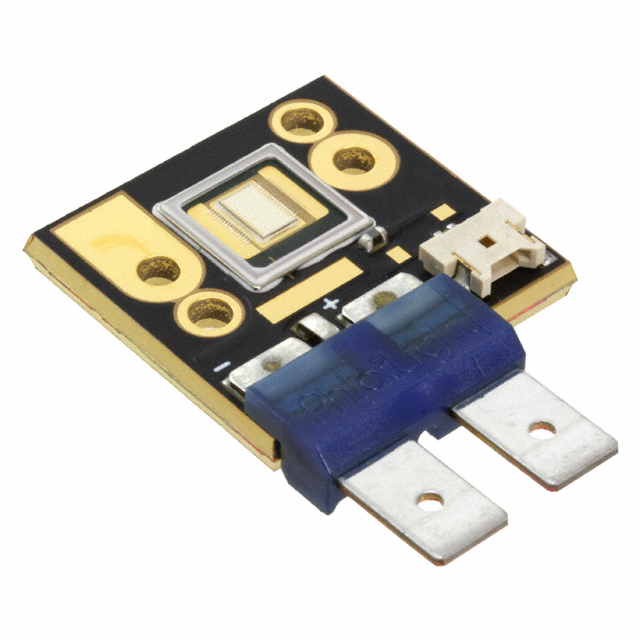

Luminus Devices Inc. CBT-120-B-C11-KN301	LED Module	2.6 mm	4.63 mm	4.1 V	Flat	5.61 mm	Square	18 A	With Connector	Blue	36 A	42 mm	28 mm
Luminus Devices Inc. CBT-120-R-C11-HM100	LED Module	2.6 mm	4.63 mm	2.3 V	Flat	5.61 mm	Square	18 A	With Connector	Red	36 A	42 mm	28 mm	635 nm	623 nm	611 nm
Luminus Devices Inc. CBT-120-B-C11-KM301	LED Module	2.6 mm	4.63 mm	4.1 V	Flat	5.61 mm	Square	18 A	With Connector	Blue	36 A	42 mm	28 mm
Luminus Devices Inc. CBT-120-B-C11-KM300	LED Module	2.6 mm	4.63 mm	4.1 V	Flat	5.61 mm	Square	18 A	With Connector	Blue	36 A	42 mm	28 mm	475 nm	463 nm	450 nm

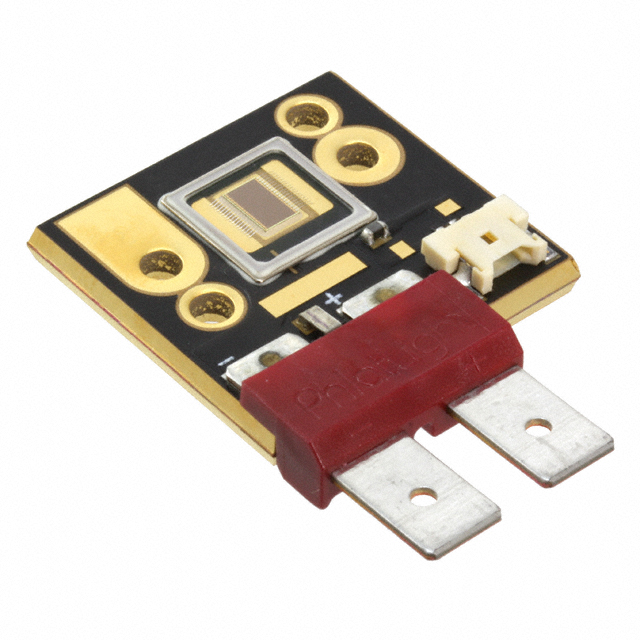

Luminus Devices Inc. CBT-120-R-C11-HK101	LED Module	2.6 mm	4.63 mm	2.3 V	Flat	5.61 mm	Square	18 A	With Connector	Red	36 A	42 mm	28 mm	623 nm	621 nm	619 nm
Luminus Devices Inc. CBT-120-R-C11-HM101	LED Module	2.6 mm	4.63 mm	2.3 V	Flat	5.61 mm	Square	18 A	With Connector	Red	36 A	42 mm	28 mm	623 nm	621 nm	619 nm
