VWS106 Series

Catalog

FASTENER, FIBRE OPTIC NETWORK SADDLE, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Part	Panel Thickness	Panel Thickness	Height [z]	Height [z]	Opening Size	Opening Size	Type	Color	Length	Length	Material Flammability Rating	Mounting Type	Material	Width [x]	Width	Panel Hole Size	Panel Hole Size

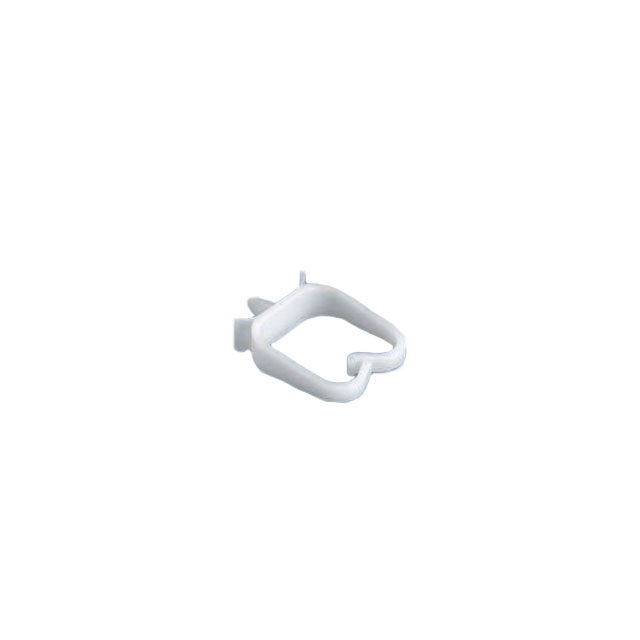

Panduit Corp VWS106-C	0.09 in	2.29 mm	33.02 mm	33.02 mm	26.92 mm	1.06 in	Clip Wire Saddle	Natural	29.97 mm	1.18 in	UL94 V-2	Arrowhead Winged	Polyamide (PA66) Nylon 6/6	0.34 in	8.64 mm	4.75 mm	0.187 in

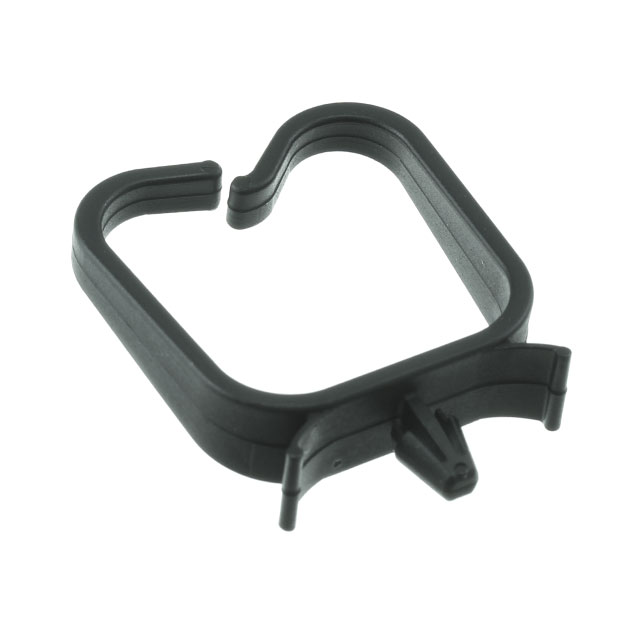

Panduit Corp VWS106-C20	0.09 in	2.29 mm	33.02 mm	33.02 mm	26.92 mm	1.06 in	Clip Wire Saddle	Black	29.97 mm	1.18 in	UL94 V-2	Arrowhead Winged	Polyamide (PA66) Nylon 6/6	0.34 in	8.64 mm	4.75 mm	0.187 in
