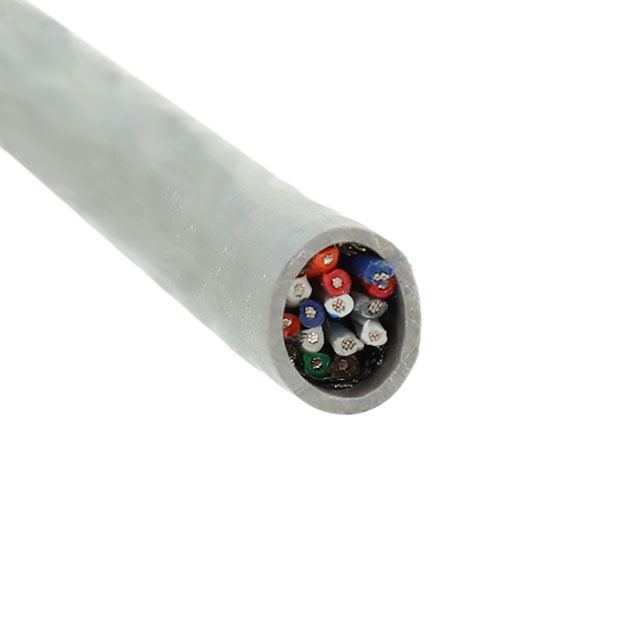

6406 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 14COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Features | Ratings | Length | Length | Jacket (Insulation) Material | Wire Gauge | Voltage | Shield Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Slate | Drain Wire | UL Style 2919 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 24 AWG | 300 VDC | Braid Foil | 14 | 7 | 32 AWG | 0.035 in | 0.889 mm | 80 °C | -20 ░C | 0.373 in | 9.47 mm | Copper Tinned | Multi-Pair | Polyethylene (PE) | ||
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Slate | Drain Wire | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 24 AWG | 300 VDC | Braid Foil | 14 | 7 | 32 AWG | 0.035 in | 0.889 mm | 80 °C | -20 ░C | 0.373 in | 9.47 mm | Copper Tinned | Multi-Pair | Polyethylene (PE) | 100 ft | 30.5 m |
