073298 Series
Manufacturer: Molex
Beta
⌘K
CONN BMA PLUG STR 50 OHM PCB
| Part | Center Contact Material | Number of Ports | Body Material | Voltage Rating | Frequency - Max [Max] | Shield Termination | Body Finish | Mating Cycles | Housing Color | Mounting Type | Connector Style | Connector Type | Fastening Type | Dielectric Material | Contact Termination | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mounting Feature | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Brass | 1 | Brass | 500 V | 22 GHz | Solder | Gold | 5000 | Gold | Through Hole | BMA | Male Pin Plug | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | 125 °C | -65 ░C | Gold | ||

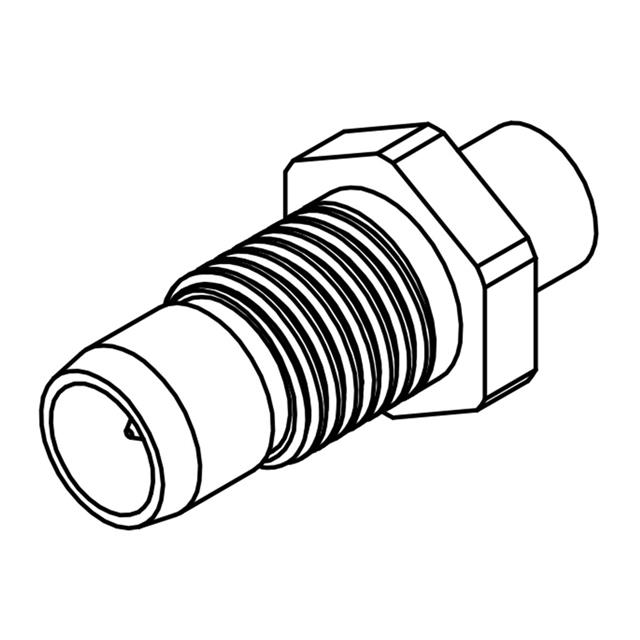

 Molex | Beryllium Copper | 1 | Stainless Steel | 335 V | 22 GHz | Solder | Gold | Gold | BMA | Male Pin Plug | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Gold | Bulkhead - Front Side Nut | |||||

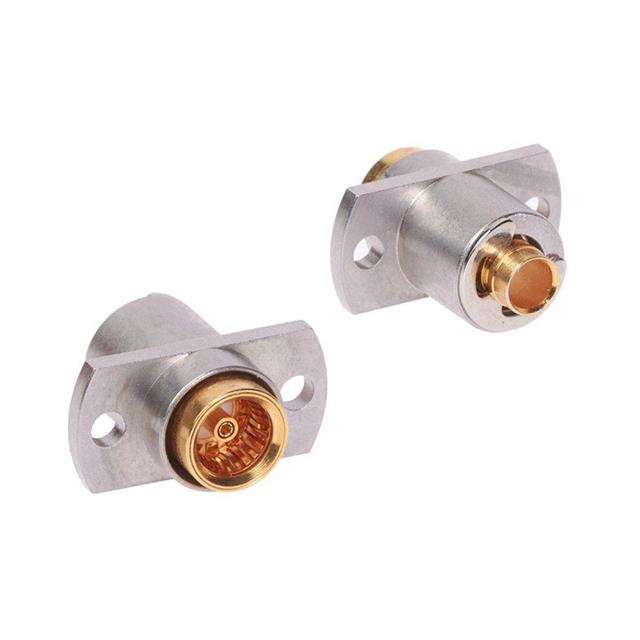

 Molex | Beryllium Copper | 1 | Stainless Steel | 500 V | 22 GHz | Solder | Gold | 5000 | Gold | BMA | Female Socket Jack | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | 125 °C | -65 ░C | Gold | Flange | ||
Molex | Beryllium Copper | 1 | Stainless Steel | 335 V | 22 GHz | Crimp | Gold | Gold | BMA | Male Pin Plug | Snap-On | Polytetrafluoroethylene (PTFE) | Crimp | 50 Ohms | Gold | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) |
