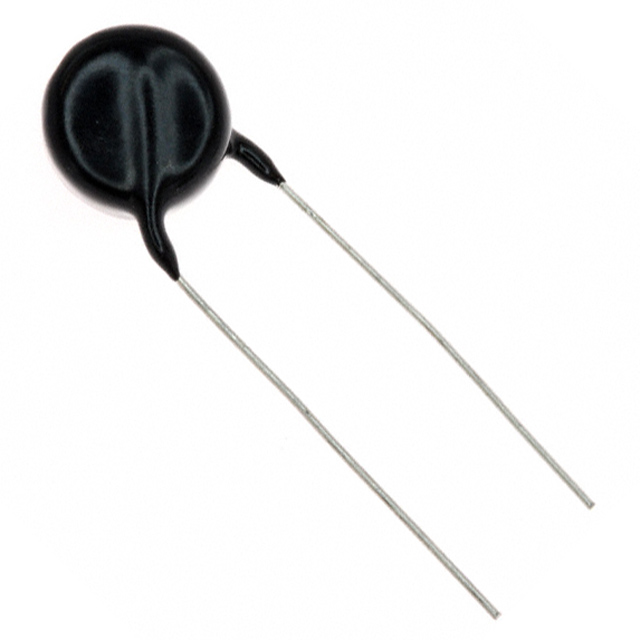

ERZ-V14 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VARISTOR 27V 2KA DISC 14MM

Part	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Energy	Varistor Voltage (Typ)	Package / Case	Maximum AC Volts [Max]	Number of Circuits	Current - Surge	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Mounting Type	Varistor Voltage (Min) [Min]	Package / Case	Maximum AC Volts	Maximum DC Volts
Panasonic Industrial Automation Sales ERZ-V14D270	16000 pF	85 °C	-40 °C	7.8 J	27 V	Disc 15.5mm	17 V	1	2 kA	30 V	22 V	Through Hole
Panasonic Industrial Automation Sales ERZ-V14D361CS	540 pF	85 °C	-40 °C		360 V	Disc	230 V	1	6 kA	396 V	300 V	Through Hole	324 V	14 mm
Panasonic Industrial Automation Sales ERZ-V14D241	700 pF	85 °C	-40 °C	84 J	240 V	Disc 15.5mm	150 V	1	6 kA	264 V	200 V	Through Hole	216 V
Panasonic Industrial Automation Sales ERZ-V14D271CS	640 pF	85 °C	-40 °C	99 J	270 V	Disc	175 V	1	6 kA	303 V	225 V	Through Hole	247 V	14 mm
Panasonic Industrial Automation Sales ERZ-V14D681	320 pF	85 °C	-40 °C	190 J	680 V	Disc 16mm	420 V	1	5 kA	748 V	560 V	Through Hole	612 V
Panasonic Industrial Automation Sales ERZ-V14D680	5500 pF	85 °C	-40 °C	20 J		Disc 16mm	40 V	1	2 kA	75 V	56 V	Through Hole	61 V
Panasonic Industrial Automation Sales ERZ-V14D220	20000 pF	85 °C	-40 °C	6.3 J	22 V	Disc 15.5mm	14 V	1	2 kA	24 V	18 V	Through Hole	20 V
Panasonic Industrial Automation Sales ERZ-V14D621	330 pF	85 °C	-40 °C	190 J	620 V	Disc 16mm		1	5 kA		505 V	Through Hole	558 V		385 V
Panasonic Industrial Automation Sales ERZ-V14D220CS	20000 pF	85 °C	-40 °C	6.3 J	22 V	Disc	14 V	1	2 kA	24 V	18 V	Through Hole	20 V	14 mm
Panasonic Industrial Automation Sales ERZ-V14D821	280 pF	85 °C	-40 °C	235 J	820 V	Disc 16mm	510 V	1	5 kA	902 V		Through Hole	738 V			670 V
