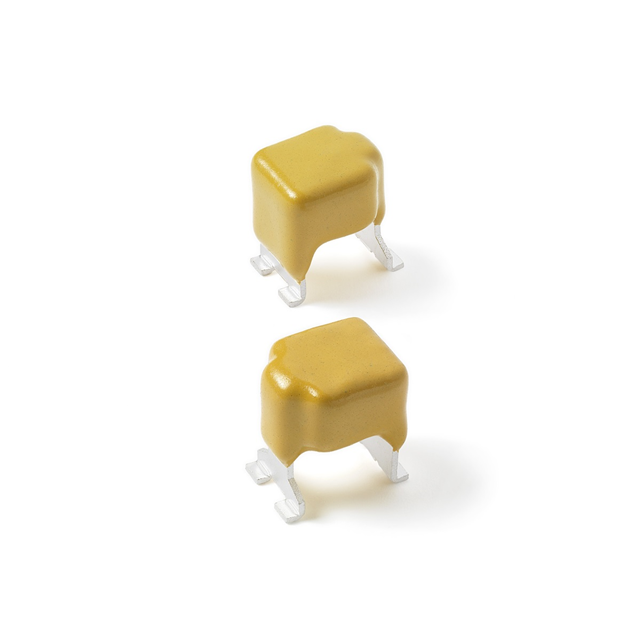

SMTAK3-076C Series

TVS SURF MT KA RATED - 3KA 76V BI

Catalog

TVS SURF MT KA RATED - 3KA 76V BI

Part	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs) [Max]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs) [Min]	Mounting Type	Applications	Type	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]
LITTELFUSE SMTAK3-076C	76 V	-55 ░C	125 °C		140 V	4-SMD	1	3000 A	20 µs	3 kA	8 µs	Surface Mount	General Purpose	Zener	6000 pF	85 V

Catalog

TVS SURF MT KA RATED - 3KA 76V BI

Description

The SMTAK3 series of high current transient suppressors have been specially designed for use in D.C. line protection and any demanding applications. They offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak technology. Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level.
