850-90 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN HEADER SMD 34POS 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Connector Type	Insulation Color	Contact Type	Insulation Height	Insulation Height	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions [custom]	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Number of Positions

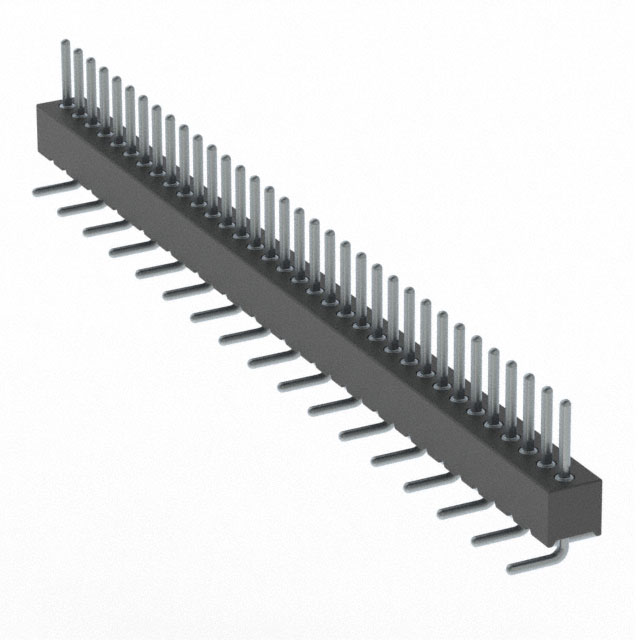

Mill-Max Manufacturing Corp. 850-90-034-30-002000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Surface Mount	34

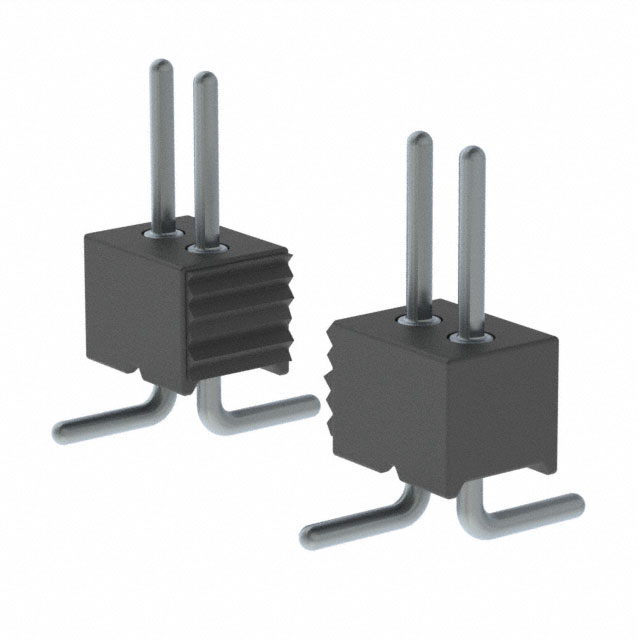

Mill-Max Manufacturing Corp. 850-90-046-30-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Surface Mount		46

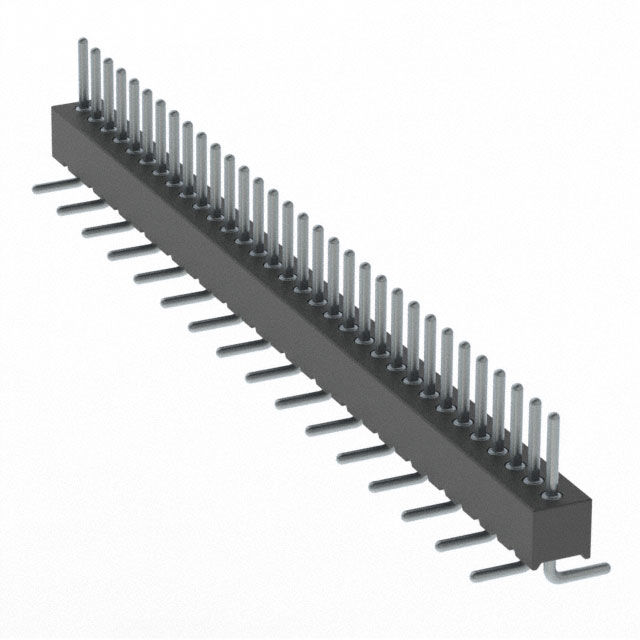

Mill-Max Manufacturing Corp. 850-90-032-30-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Surface Mount

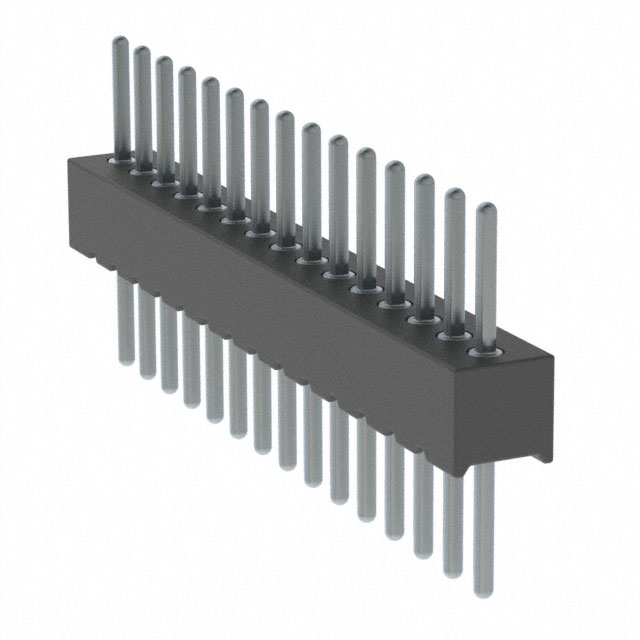

Mill-Max Manufacturing Corp. 850-90-015-10-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Through Hole		15	8.1 mm	0.319 in	0.114 in	2.9 mm

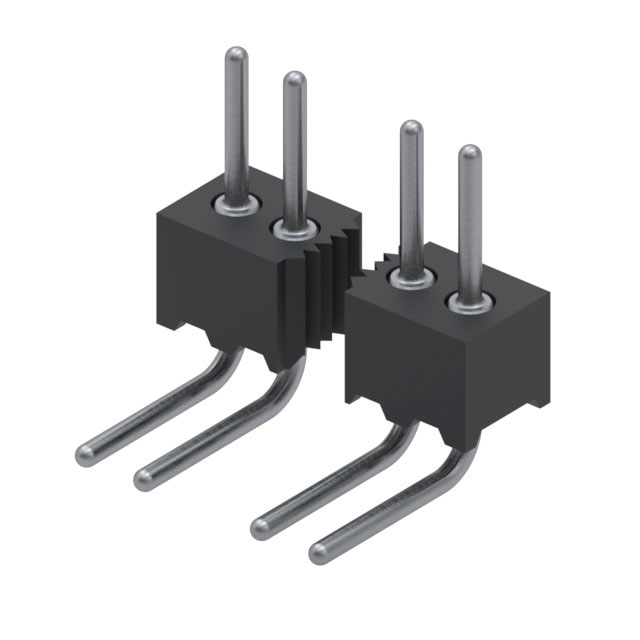

Mill-Max Manufacturing Corp. 850-90-014-20-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Right Angle Through Hole		14					0.118 in	3 mm
Mill-Max Manufacturing Corp. 850-90-020-30-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Surface Mount		20
Mill-Max Manufacturing Corp. 850-90-018-30-002000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Surface Mount		18

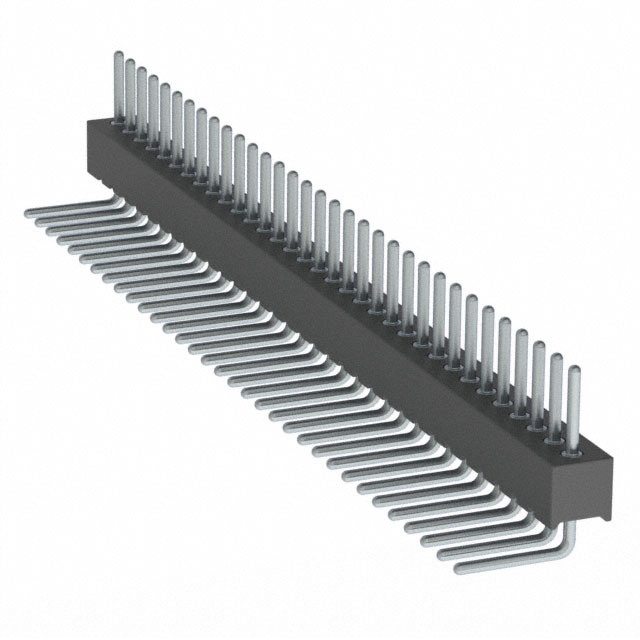

Mill-Max Manufacturing Corp. 850-90-033-20-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Right Angle Through Hole	33						0.118 in	3 mm
Mill-Max Manufacturing Corp. 850-90-047-20-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Right Angle Through Hole							0.118 in	3 mm	47
Mill-Max Manufacturing Corp. 850-90-011-10-001000	200 µin	5.08 µm	Tin-Lead	1	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	Nylon 4/6 Polyamide (PA46)	5.08 µm	200 µin	Unshrouded	Header	Black	Male Pin	0.087 "	2.2 mm	Circular	Solder	Push-Pull	All	3 mm	0.118 in	Through Hole		11	8.1 mm	0.319 in	0.114 in	2.9 mm
