AOB286 Series

Catalog

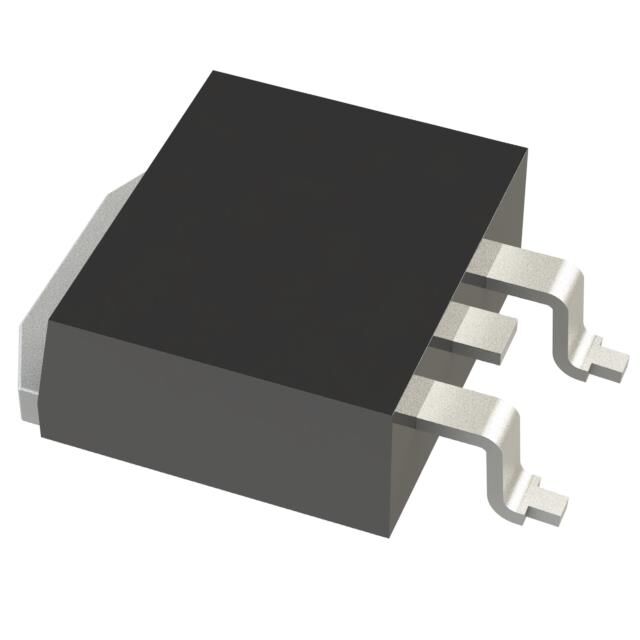

MOSFET N-CH 80V 13A/70A TO263

Part	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Vgs (Max)	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Technology	FET Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Alpha & Omega Semiconductor Inc. AOB286L	3.3 V	63 nC	13 A 70 A	6 V 10 V	5.7 mOhm	2.1 W 167 W	20 V	80 V	3142 pF	Surface Mount	MOSFET (Metal Oxide)	N-Channel	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	TO-263 (D2PAK)	175 °C	-55 °C
