HLMP-EL1 Series

Catalog

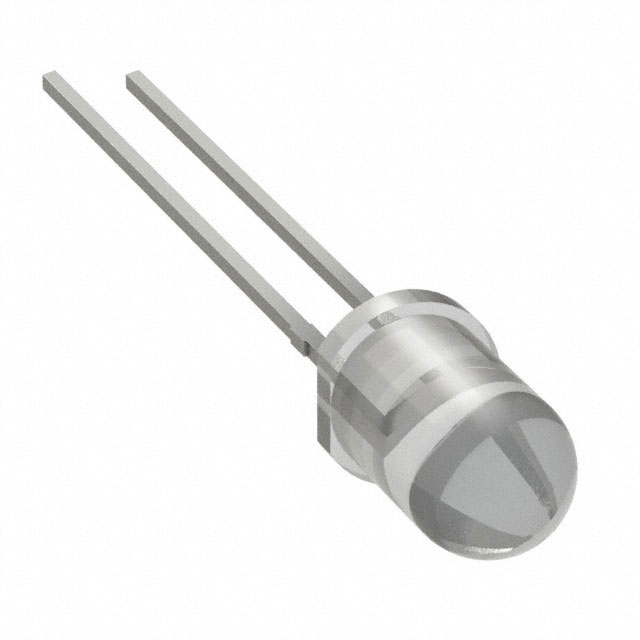

LED AMBER CLEAR T-1 3/4 T/H

Part	Millicandela Rating	Supplier Device Package	Lens Size	Lens Size	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Package / Case	Lens Transparency	Lens Color	Wavelength - Peak	Mounting Type	Lens Style	Configuration	Color	Height (Max) [Max]	Height (Max) [Max] [z]	Size / Dimension [diameter]
Broadcom Limited HLMP-EL1A-Z1LDV	16500 mcd	T-1 3/4	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial	Clear	Colorless	594 nm	Through Hole	Round with Domed Top	Standard	Amber	8.91 mm
Broadcom Limited HLMP-EL1A-Z1KDD	16500 mcd	T-1 3/4	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial	Clear	Colorless	594 nm	Through Hole	Round with Domed Top	Standard	Amber	8.91 mm
Broadcom Limited HLMP-EL1B-Z1LDD	16500 mcd	T-1 3/4	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial	Clear	Colorless	594 nm	Through Hole	Round with Domed Top	Standard	Amber		12.64 mm
Broadcom Limited HLMP-EL1B-Z1LDV	16500 mcd	T-1 3/4	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial	Clear	Colorless	594 nm	Through Hole	Round with Domed Top	Standard	Amber		12.64 mm
Broadcom Limited HLMP-EL1T-Z2LDD		T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial			594 nm	Through Hole	Round with Domed Top	Standard	Amber		13.28 mm	5 mm
Broadcom Limited HLMP-EL1T-Z20DD		T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial			594 nm	Through Hole	Round with Domed Top	Standard	Amber		13.28 mm	5 mm
Broadcom Limited HLMP-EL1S-Z2KDD		T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial			594 nm	Through Hole	Round with Domed Top	Standard	Amber	8.91 mm		5 mm
Broadcom Limited HLMP-EL1B-Z1KDD	16500 mcd	T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial	Clear	Colorless	594 nm	Through Hole	Round with Domed Top	Standard	Amber		12.64 mm

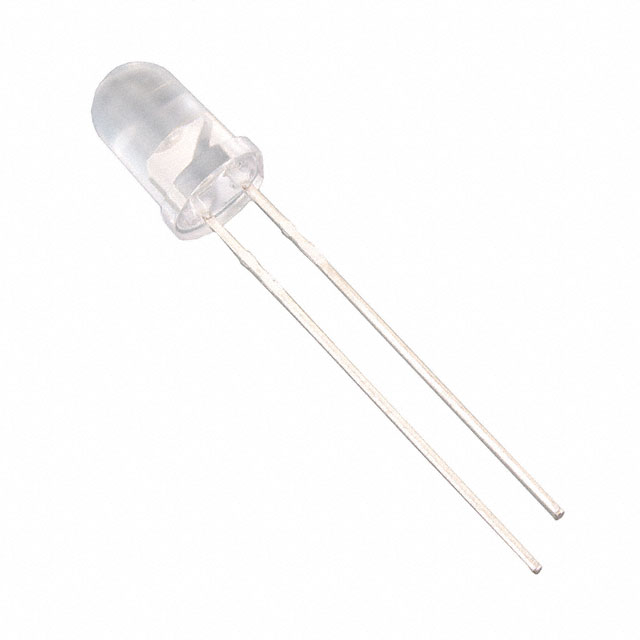

Broadcom Limited HLMP-EL1G-130DD	25500 mcd	T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial			594 nm	Through Hole	Round with Domed Top		Amber		9.92 mm
Broadcom Limited HLMP-EL1S-Z20DD		T-1 3/4 (5mm)	T-1 3/4	5 mm	15 °	20 mA	2.1 V	590 nm	Radial			594 nm	Through Hole	Round with Domed Top	Standard	Amber	8.91 mm		5 mm
