DPG60C300 Series

Manufacturer: IXYS

Catalog

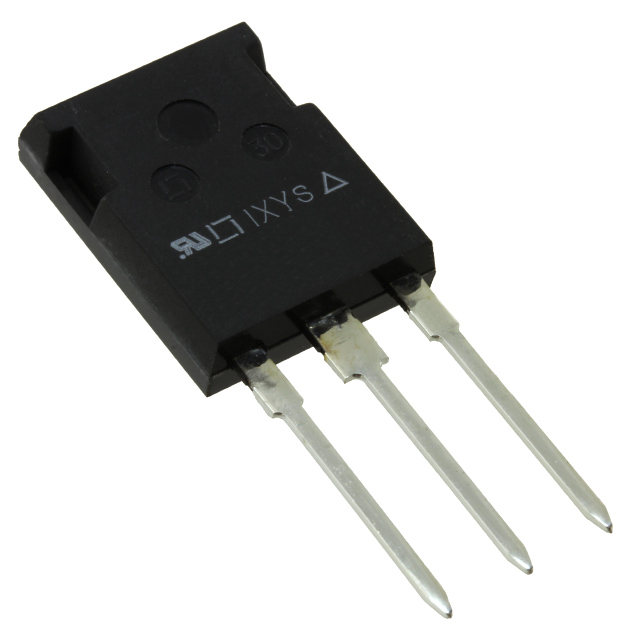

DIODE ARR GP 300V 30A ISOPLUS247

Part	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS DPG60C300HJ	Through Hole	1 µA	1.26 V	ISOPLUS247™	Standard	200 mA 500 ns	300 V	1 Pair Common Cathode	35 ns	30 A	TO-247-3	175 ░C	-55 C
IXYS DPG60C300HB	Through Hole	1 µA	1.34 V	TO-247AD	Standard	200 mA 500 ns	300 V	1 Pair Common Cathode	35 ns	30 A	TO-247-3	175 ░C	-55 C
IXYS DPG60C300QB	Through Hole	1 µA	1.34 V	TO-3P	Standard	200 mA 500 ns	300 V	1 Pair Common Cathode	35 ns	30 A	SC-65-3 TO-3P-3	175 ░C	-55 C
IXYS DPG60C300PC-TRL	Surface Mount	1 µA	1.35 V	TO-263AA	Standard	200 mA 500 ns	300 V	1 Pair Common Cathode	35 ns	30 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	175 ░C	-55 C
