RJHSE538 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN MOD JACK 8P8C R/A SHLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Number of Positions/Contacts | Contact Material | LED Color | Number of Rows | Orientation | Contact Finish | Tab Direction | Features | Shielding | Mounting Type | Connector Type | Termination | Number of Ports [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 4 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green Yellow | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green Green - Red | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green Yellow - Green | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |

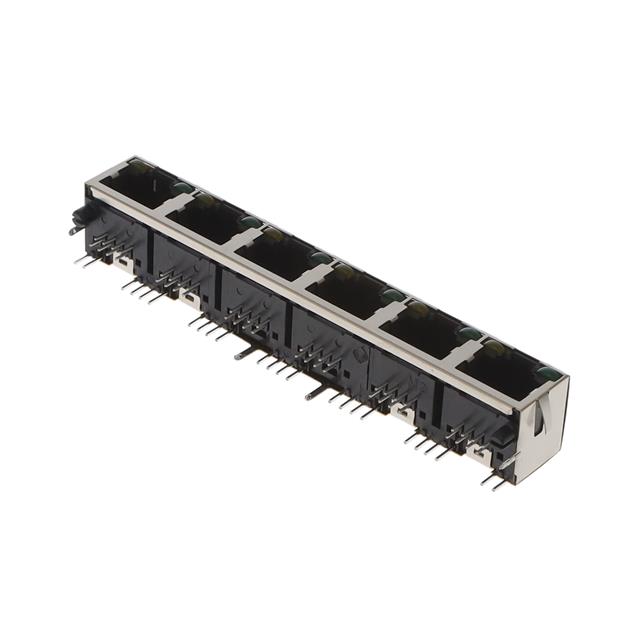

 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green Yellow | 1 | 90 ° | Gold | Up | EMI Finger Shielded | Through Hole | Jack | Solder | 6 | ||
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 4 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green Red | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 8 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Yellow | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 2 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | ||
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green - Yellow | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder | |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Thermoplastic | -55 C | 85 °C | 2 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Green - Yellow | 1 | 90 ° | Gold | Up | Board Lock | EMI Finger Shielded | Through Hole | Jack | Solder |
