2823104 Series

Catalog

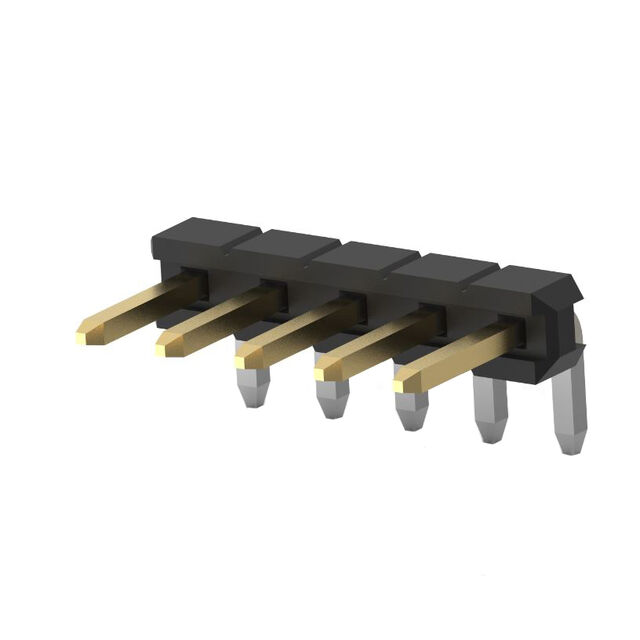

5P,2MM,BRK HDR,SRRT,2.8,0.76AU,T

Part	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Voltage Rating	Insulation Material	Insulation Color	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Type	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Mating	Fastening Type	Shrouding	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating
TE Connectivity Raychem Cable Protection 2823104-5	Phosphor Bronze	0.11 in	2.8 mm	125 °C	-40 °C	30 Áin	0.76 Ám	Square	UL94 V-0	Solder	0.3 µm	12 µin	0.079 in	2 mm	125 VAC	Thermoplastic	Black	Breakaway Header	Tin	All	Male Pin	Through Hole Right Angle	0.079 in	2 mm	1	Gold	Push-Pull	Unshrouded	2 A	4 mm	0.157 in
