TUSB214-Q1 Series

Automotive USB 2.0 high speed signal conditioner with DC boost and integrated CDP

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost and integrated CDP

Part	Mounting Type	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Grade	Qualification	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Receiver Hysteresis	Package / Case	Package / Case	Type	Function	Supplied Contents	Utilized IC / Part
Texas Instruments TUSB214IRWBT	Surface Mount	Signal Processing	3.6 V	3 V	USB	12-XFQFN	1.6	12-X2QFN	1.6
Texas Instruments TUSB214RWBR	Surface Mount	USB	3.6 V	3 V	I2C	12-XFQFN	1.6	12-X2QFN	1.6
Texas Instruments TUSB214QRWBTQ1	Surface Mount	USB	3.6 V	3 V	I2C	12-XFQFN	1.6	12-X2QFN	1.6	Automotive	AEC-Q100

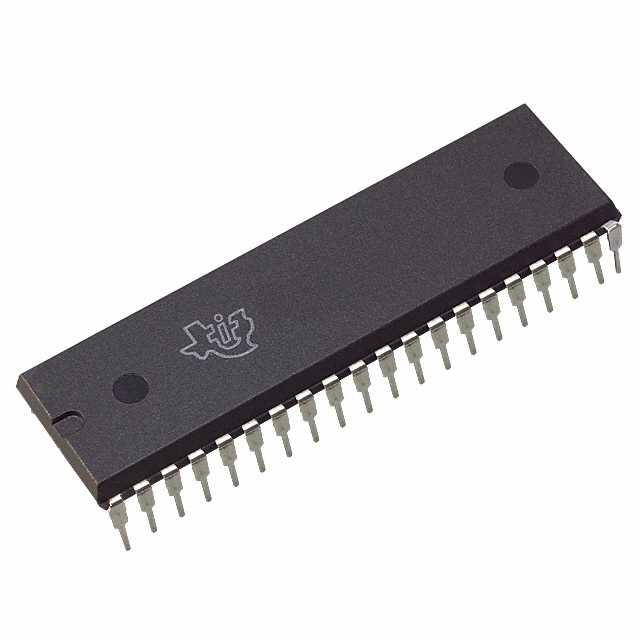

Texas Instruments TUSB2140BN	Through Hole		5.25 V	3 V		40-DIP		40-PDIP				USB 1.1	70 °C	0 °C	700 mV	15.24 mm	0.6 in	Transceiver
Texas Instruments TUSB214IRWBR	Surface Mount	USB	3.6 V	3 V	I2C	12-XFQFN	1.6	12-X2QFN	1.6

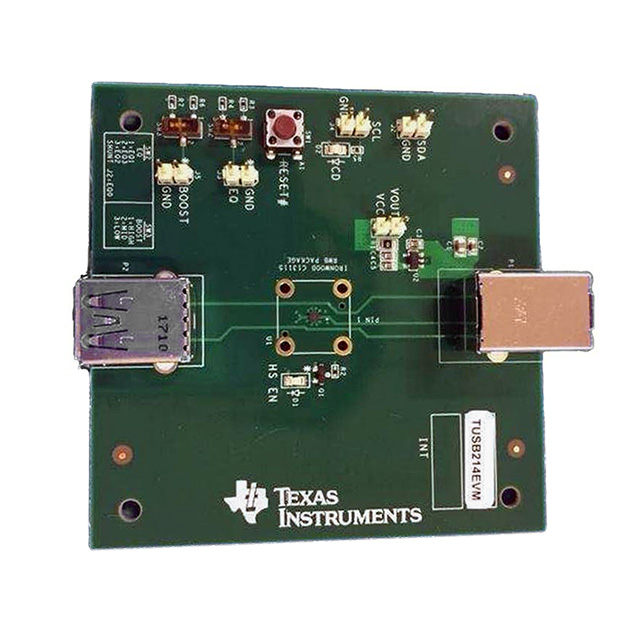

Texas Instruments TUSB214EVM																		Interface	Signal Conditioner	Board(s)	TUSB214
Texas Instruments TUSB214RWBT	Surface Mount	Signal Processing	3.6 V	3 V	USB	12-XFQFN	1.6	12-X2QFN	1.6

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost and integrated CDP

Key Features

• Qualified for Automotive Applications:Device Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C configurableBC1.2 Charging Downstream Port (CDP) controllerSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionSelectable Signal Gain Via Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Settings Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal IntegrityQualified for Automotive Applications:Device Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C configurableBC1.2 Charging Downstream Port (CDP) controllerSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionSelectable Signal Gain Via Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Settings Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal Integrity

Description

The TUSB214-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel. TUSB214-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB214-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector. This helps to pass USB High Speed electrical compliance tests. In addition, TUSB214-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols. The TUSB214-Q1 provides BC1.2 Charging Downstream Port (CDP) controller for applications in which USB host or hub do not have this support. The TUSB214-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel. TUSB214-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB214-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector. This helps to pass USB High Speed electrical compliance tests. In addition, TUSB214-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols. The TUSB214-Q1 provides BC1.2 Charging Downstream Port (CDP) controller for applications in which USB host or hub do not have this support.
