3SU1136 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON. WHITE

Part	Electrical Life	Mechanical Life	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Color - Actuator/Cap	Circuit	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Voltage Rating - DC	Illumination Type, Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC
Siemens 3SU11360AB601FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	White	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED White	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB601BA0	10000000 Cycles	3000000 Cycles	Off-Mom	IP66 IP67 IP69K	230 VAC	White	SPST-NO	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED White	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB701FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	Clear	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED White	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB401FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	Green	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	Green LED	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB301BA0	10000000 Cycles	3000000 Cycles	Off-Mom	IP66 IP67 IP69K	230 VAC	Yellow	SPST-NO	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED Yellow	10 A	-25 °C	70 °C	500 V

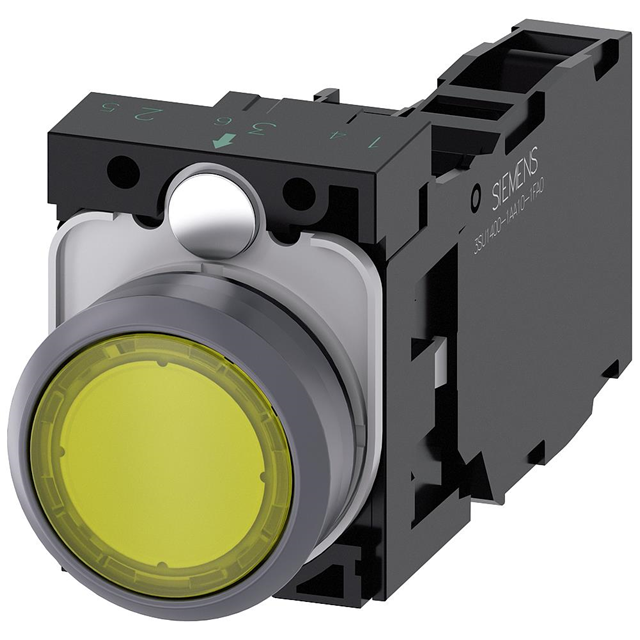

Siemens 3SU11360AB301FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	Yellow	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED Yellow	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB201CA0	10000000 Cycles	3000000 Cycles	On-Mom	IP66 IP67 IP69K	230 VAC	Red	SPST-NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED Red	10 A	-25 °C	70 °C	500 V
Siemens 3SU11360AB701BA0	10000000 Cycles	3000000 Cycles	Off-Mom	IP66 IP67 IP69K	230 VAC	Clear	SPST-NO	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED White	10 A	-25 °C	70 °C	500 V

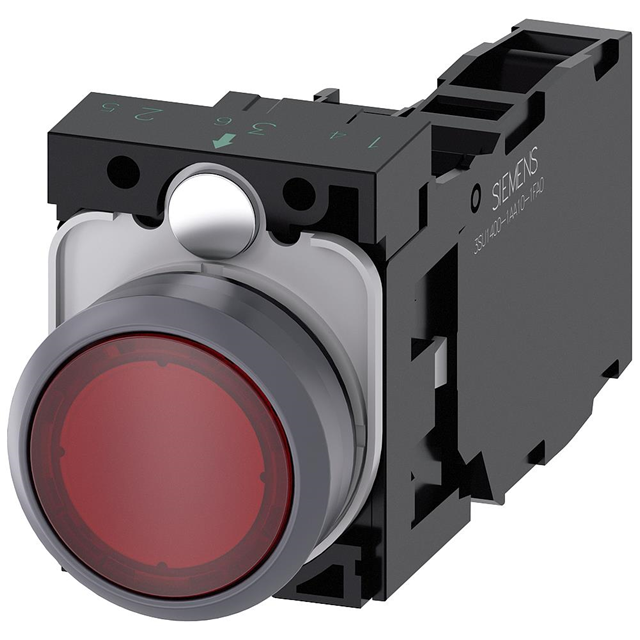

Siemens 3SU11360AB201FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	Red	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	LED Red	10 A	-25 °C	70 °C	500 V

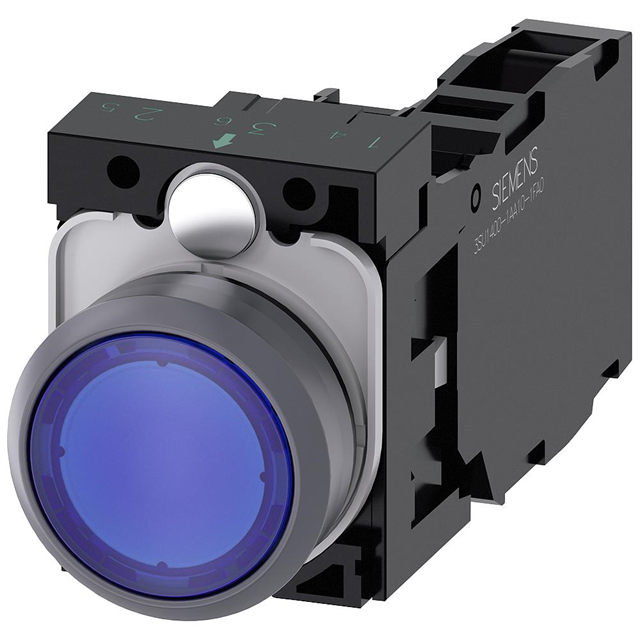

Siemens 3SU11360AB501FA0	10000000 Cycles	3000000 Cycles	Off-Mom On-Mom	IP66 IP67 IP69K	230 VAC	Blue	DPST-NO/NC	Button Round	Screw Terminal	22.3 mm	Illuminated Standard	Panel Mount Front	500 V	Blue LED	10 A	-25 °C	70 °C	500 V
