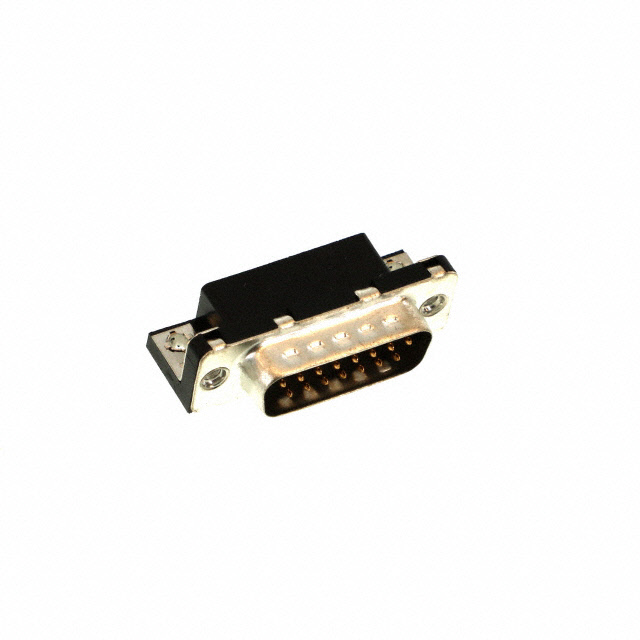

D15P33 Series

Catalog

CONN D-SUB PLUG 15POS R/A SLDR

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Size, Connector Layout	Connector Style	Shell Material, Finish	Dielectric Material	Connector Type	Contact Finish Thickness	Number of Rows	Voltage Rating	Contact Type	Mounting Type	Number of Positions	Contact Finish	Features	Material Flammability Rating	Termination	Backset Spacing	Backset Spacing	Contact Material	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature

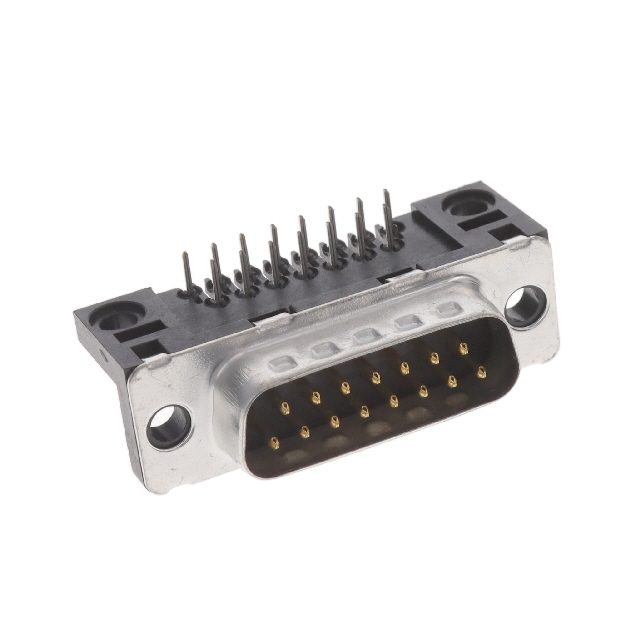

Amphenol ICC (FCI) D15P33E4PA00LF	Black	-55 °C	125 °C	Housing/Shell (Unthreaded)	2	D-Sub	Steel Tin-Nickel Plated	Thermoplastic	Male Pins Plug	Flash	2	300 VDC	Signal	Through Hole Right Angle	15	Gold	Grounding Indents	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A
Amphenol ICC (FCI) D15P33E6GL00	Black	-55 °C	125 °C	Housing/Shell (M3)	2	D-Sub		Thermoplastic	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P33E6RX12LF	Black			Housing/Shell (4-40)	2	D-Sub	Nickel Plated Steel	Glass Filled Nylon Polyamide (PA)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold	Board Guide Grounding Indents Mounting Brackets	UL94 V-0	Solder Paste	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin	-55 °C
Amphenol ICC (FCI) D15P33E6GV00	Black	-55 °C	125 °C	Female Screwlock (4-40) Mating Side	2	D-Sub		Polybutylene Terephthalate (PBT)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin

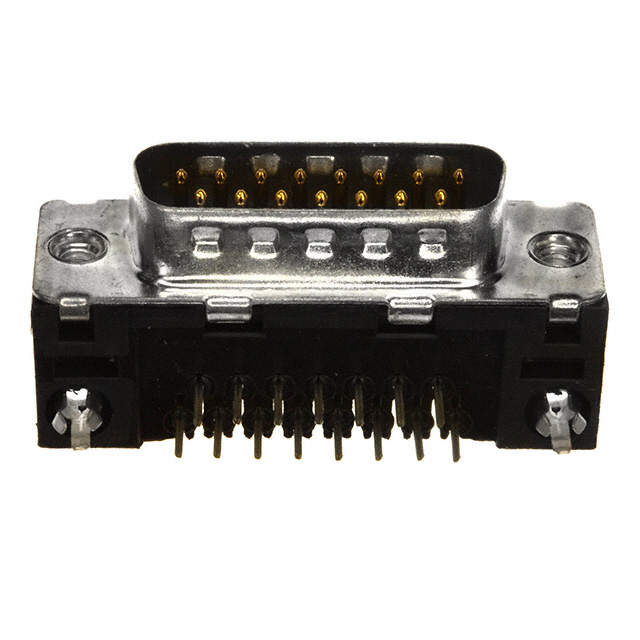

Amphenol ICC (FCI) D15P33E4GX00LF	Black	-55 °C	125 °C	Housing/Shell (4-40)	2	D-Sub	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Male Pins Plug	Flash	2	300 VDC	Signal	Through Hole Right Angle	15	Gold	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A
Amphenol ICC (FCI) D15P33E6GV09LF	Black	-55 °C	125 °C	Female Screwlock (4-40) Mating Side	2	D-Sub		Polybutylene Terephthalate (PBT)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P33E6RL12LF	Black			Housing/Shell (M3)	2	D-Sub	Nickel Plated Steel	Glass Filled Nylon Polyamide (PA)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Guide Grounding Indents Mounting Brackets	UL94 V-0	Solder Paste	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin	-55 °C
Amphenol ICC (FCI) D15P33E6GX00LF	Black	-55 °C	125 °C	Housing/Shell (4-40)	2	D-Sub	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P33E6RV09LF	Black			Female Screwlock (4-40) Mating Side	2	D-Sub	Nickel Plated Steel	Glass Filled Nylon Polyamide (PA)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Guide Grounding Indents Mounting Brackets	UL94 V-0	Solder Paste	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin	-55 °C
Amphenol ICC (FCI) D15P33E6RV12LF	Black			Female Screwlock (4-40) Mating Side	2	D-Sub	Nickel Plated Steel	Glass Filled Nylon Polyamide (PA)	Male Pins Plug		2	300 VDC	Signal	Through Hole Right Angle	15	Gold or Gold GXT™	Board Guide Grounding Indents Mounting Brackets	UL94 V-0	Solder Paste	8.08 mm	0.318 "	Brass	5 A	0.76 Ám	30 Áin	-55 °C
