R2920 Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 33V 1.1A 2920

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Time to Trip	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - Max [Max]	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Type	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]	Resistance - Post Trip (R1) (Max) [Max] [custom]
OptiFuse R2920-100-R	1 mm	0.039 in	500 ms	1.1 A	2920 (7351 Metric) Concave	100 A	2.2 A	7.36 mm	0.202 in	0.29 "	5.12 mm	cULus TUV	Polymeric	410 mOhms	Surface Mount	85 °C	-40 C	33 V	90 mOhms
OptiFuse R2920-100-60-R			500 ms	1.1 A	2920 (7351 Metric) Concave	100 A	2.2 A	7.36 mm	0.202 in	0.29 "	5.12 mm	cULus TUV	Polymeric	410 mOhms	Surface Mount	85 °C	-40 C	60 V	90 mOhms	0.067 "	1.7 mm

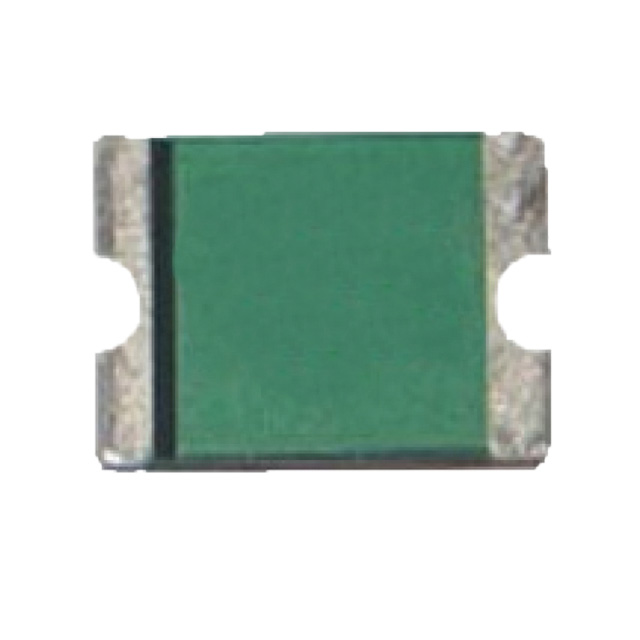

OptiFuse R2920-050-R	1.15 mm	0.045 in	4 s	500 mA	2920 (7351 Metric) Concave	100 A	1 A	7.36 mm	0.202 in	0.29 "	5.12 mm	cULus TUV	Polymeric		Surface Mount	85 °C	-40 C	60 V	300 mOhms			1.4 Ohms
