ALC80C Series

Manufacturer: KEMET

Catalog

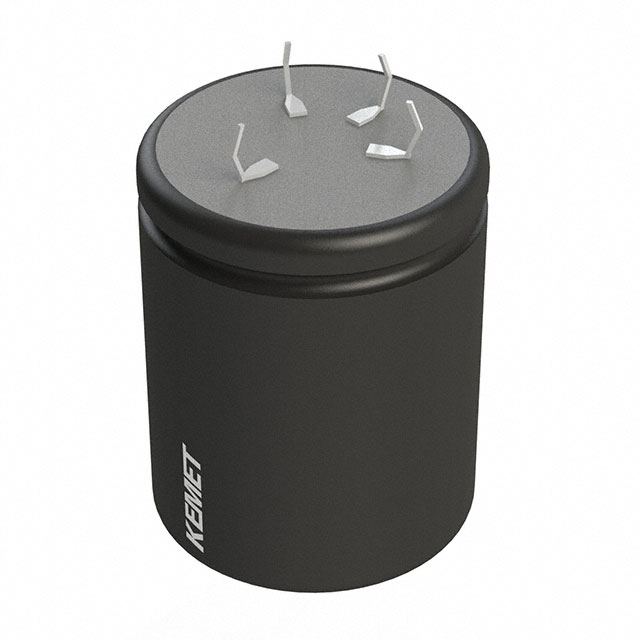

CAP ALUM 560UF 20% 450V SNAP TH

Part	Capacitance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Voltage - Rated	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
KEMET ALC80C561EF450	560 µF	Polar	1.575 in	40 mm	9000 Hrs	140 mOhms	2.047 in	52 mm	General Purpose	20 %	3.2 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	450 V	7.97 A	-40 C	105 ░C	240 mOhm
KEMET ALC80C621DC250	620 µF	Polar	1.378 "	35 mm	8000 Hrs	170 mOhms			General Purpose	20 %	2.5 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	250 V	5.53 A	-40 C	105 ░C	286 mOhm	37 mm	1.457 in
KEMET ALC80C102DF250	1000 µF	Polar	1.378 "	35 mm	8000 Hrs	106 mOhms	2.047 in	52 mm	General Purpose	20 %	3.46 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	250 V	7.52 A	-40 C	105 ░C	178 mOhm
KEMET ALC80C223EH063	22000 µF	Polar	1.575 in	40 mm	9000 Hrs	19 mOhms	2.441 in		General Purpose	20 %	10.07 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	63 V	11.97 A	-40 C	105 ░C	24 mOhm	62 mm
KEMET ALC80C112EL450	1100 µF	Polar	1.575 in	40 mm	9000 Hrs	74 mOhms		3.228 in	General Purpose	20 %	4.92 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	450 V	11.12 A	-40 C	105 ░C	125 mOhm			82 mm
KEMET ALC80C152EF250	1.5 mF	Polar	1.575 in	40 mm	9000 Hrs	77 mOhms	2.047 in	52 mm	General Purpose	20 %	4.41 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	250 V	8.39 A	-40 C	105 ░C	126 mOhm
KEMET ALC80C114EL025	110000 µF	Polar	1.575 in	40 mm	9000 Hrs	15 mOhms		3.228 in	General Purpose	20 %	13.66 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	25 VDC	14.88 A	-40 C	105 ░C	16 mOhm			82 mm
KEMET ALC80C301DC400	300 µF	Polar	1.378 "	35 mm	8000 Hrs	210 mOhms			General Purpose	20 %	1.93 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	400 V	5.34 A	-40 C	105 ░C	408.4 mOhm	37 mm	1.457 in
KEMET ALC80C331EB400	330 µF	Polar	1.575 in	40 mm	9000 Hrs	200 mOhms			General Purpose	20 %	2.07 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	400 V	5.16 A	-40 C	105 ░C	384 mOhm		1.26 in		32 mm
KEMET ALC80C273DC025	27 mF	Polar	1.378 "	35 mm	8000 Hrs	41 mOhms			General Purpose	20 %	7.28 A	Through Hole	0.886 in	22.5 mm	Radial Can - Snap-In - 4 Lead	25 VDC	8.75 A	-40 C	105 ░C	46.56 mOhm	37 mm	1.457 in
