1376382 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

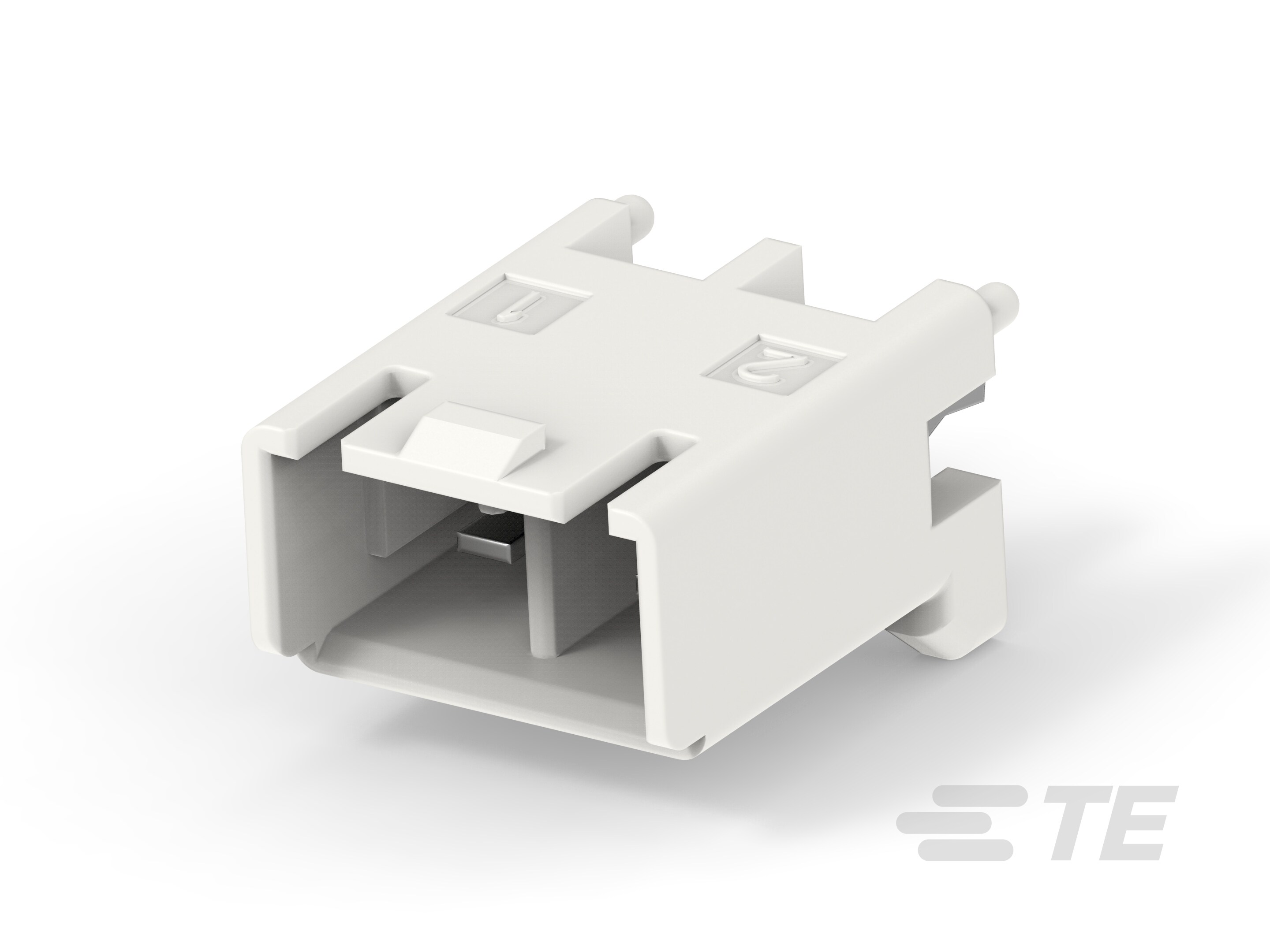

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE STRAIGHT
| Part | Mated Stacking Heights | Applications | Features | Number of Positions Loaded | Current Rating (Amps) | Contact Shape | Insulation Material | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Fastening Type | Mounting Type | Contact Type | Termination | Insulation Height | Insulation Height | Insulation Color | Style | Connector Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

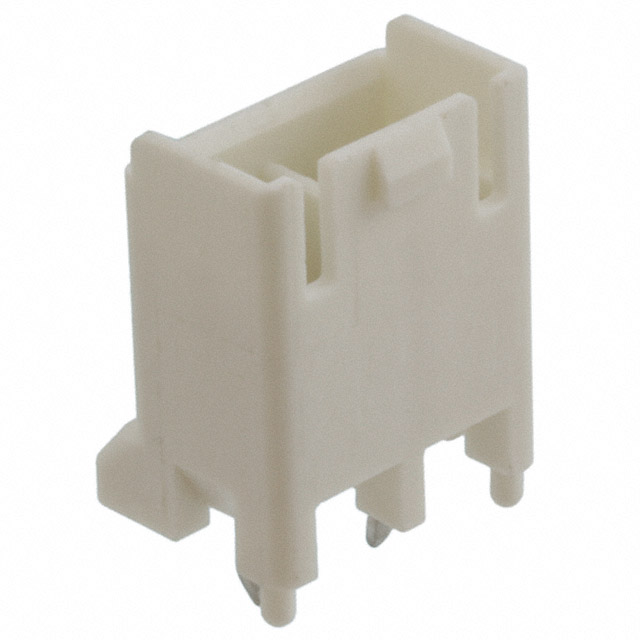

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | Board Guide | All | Varies by Wire Gauge | Rectangular | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | 0.138 in | 3.5 mm | Tin | 0.197 " | 5 mm | UL94 V-0 | Locking Ramp | Through Hole | Tab | Kinked Pin Solder | 14.1 mm | 0.555 in | Natural | Board to Cable/Wire | Header | Copper Alloy | -40 C | 105 ░C | Shrouded - 4 Wall | 2 | 300 VAC |
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | Board Guide | All | Varies by Wire Gauge | Rectangular | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | 0.138 in | 3.5 mm | Tin | 0.197 " | 5 mm | UL94 V-0 | Locking Ramp | Through Hole | Tab | Kinked Pin Solder | 14.1 mm | 0.555 in | Natural | Board to Cable/Wire | Header | Copper Alloy | -40 C | 105 ░C | Shrouded - 4 Wall | 2 | 300 VAC |
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | Board Guide | All | Varies by Wire Gauge | Rectangular | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | 0.138 in | 3.5 mm | Tin | 0.197 " | 5 mm | UL94 V-0 | Locking Ramp | Through Hole | Tab | Solder | 14.1 mm | 0.555 in | Natural | Board to Cable/Wire | Header | Copper Alloy | -40 C | 105 ░C | Shrouded - 4 Wall | 2 | 300 VAC |

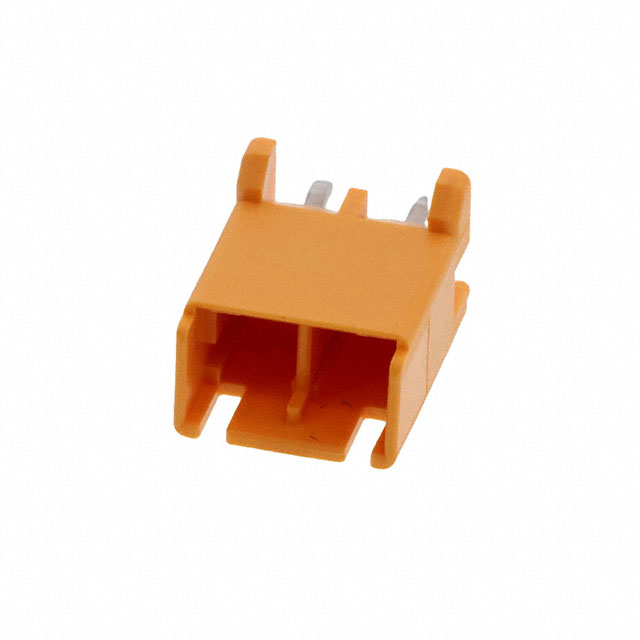

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | Board Guide | All | Varies by Wire Gauge | Rectangular | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | 0.138 in | 3.5 mm | Tin | 0.197 " | 5 mm | UL94 V-0 | Locking Ramp | Through Hole | Tab | Kinked Pin Solder | 14.1 mm | 0.555 in | Yellow | Board to Cable/Wire | Header | Copper Alloy | -40 C | 105 ░C | Shrouded - 4 Wall | 2 | 300 VAC |
