67150 Series

Catalog

HOOK-UP STRND 16AWG YLW 1640.4'

Part	Cable Type	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length	Length
ALPHA WIRE 67150 YL034	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Yellow	16 AWG	-40 C	105 ░C	1640.4 ft	500 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)
ALPHA WIRE 67150 GY033	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Green Yellow Stripe	16 AWG	-40 C	105 ░C	328.1 ft	100 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)
ALPHA WIRE 67150 YL033	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Yellow	16 AWG	-40 C	105 ░C	328.1 ft	100 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)

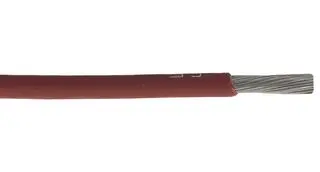

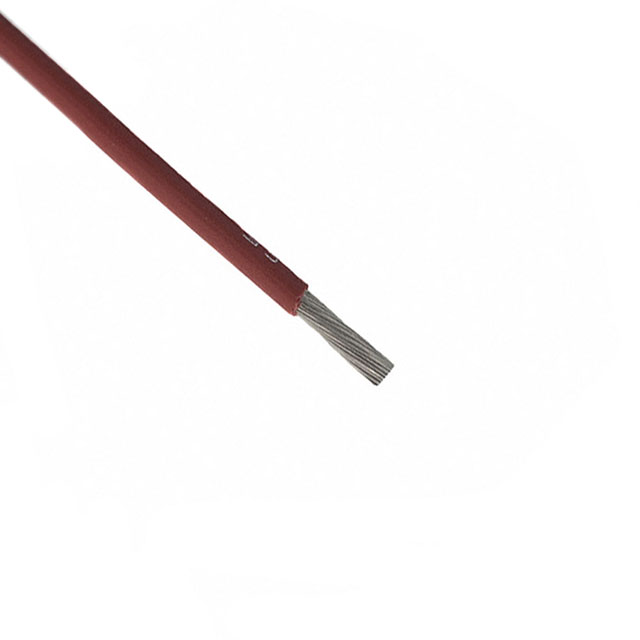

ALPHA WIRE 67150 BR033	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Brown	16 AWG	-40 C	105 ░C	328.1 ft	100 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)
ALPHA WIRE 67150 GR034	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Green	16 AWG	-40 C	105 ░C	1640.4 ft	500 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)

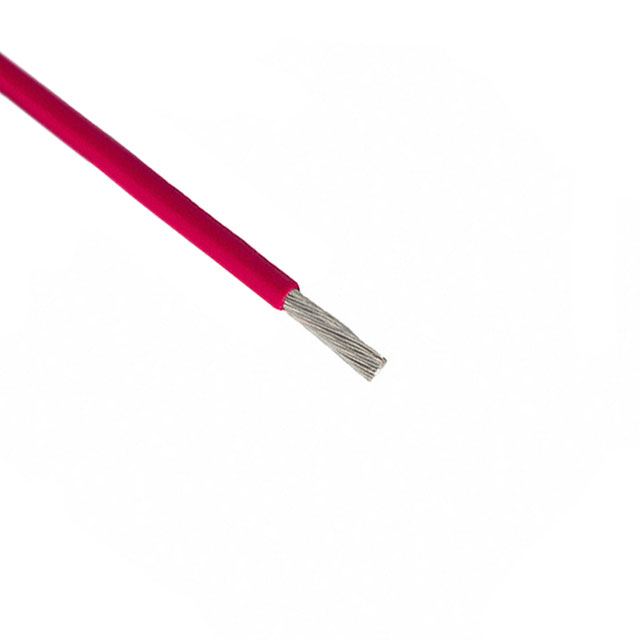

ALPHA WIRE 67150 RD034	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Red	16 AWG	-40 C	105 ░C	1640.4 ft	500 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)

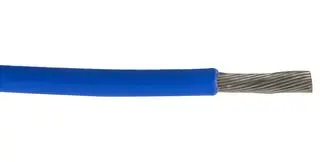

ALPHA WIRE 67150 BL033	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Blue	16 AWG	-40 C	105 ░C	328.1 ft	100 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)
ALPHA WIRE 67150 GY034	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Green Yellow Stripe	16 AWG	-40 C	105 ░C	1640.4 ft	500 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)

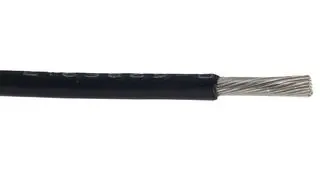

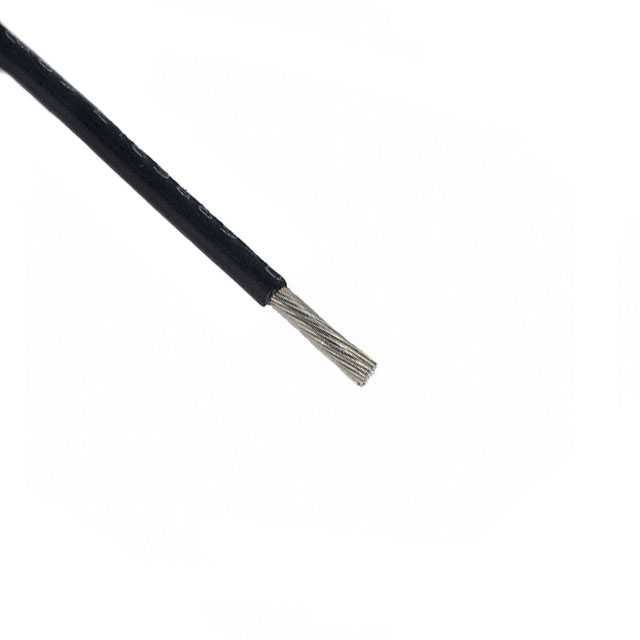

ALPHA WIRE 67150 BK321	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	Black	16 AWG	-40 C	105 ░C			0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)	50 m	164 ft
ALPHA WIRE 67150 WH034	Hook-Up	UL Style 11028	0.086 in	2.18 mm	600 V	Copper Tinned	0.0063 in	84	White	16 AWG	-40 C	105 ░C	1640.4 ft	500 m	0.011 "	0.28 mm	Polyphenylene Ether Modified (mPPE)
