OSTNR20 Series

Catalog

3.5MM 2 PC TERM BLOCK HEADER R/A

Part	Housing Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Contact Material	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Header Orientation	Voltage - UL	Number of Levels	Current - UL	Color	Number of Positions	Type	Contact Mating Finish	Features	Pitch	Pitch	Positions Per Level	Mounting Type	Termination Style	Insulation Height	Insulation Height
On Shore Technology Inc. OSTNR201201	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	UL94 V-0	Copper	10.8 mm	0.425 in	115 °C	-40 C	90° Right Angle	150 V	2	8 A	Black	20	Header Male Pins Shrouded (4 Side)	Tin	Mating Flange	3.5 mm	0.138 "	10	Through Hole	Solder
On Shore Technology Inc. OSTNR201101	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	UL94 V-0	Copper	10.8 mm	0.425 in	115 °C	-40 C	90° Right Angle	150 V	2	8 A	Black	20	Header Male Pins Shrouded (4 Side)	Tin		3.5 mm	0.138 "	10	Through Hole	Solder
On Shore Technology Inc. OSTNR201200	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	UL94 V-0	Copper			115 °C	-40 C	Vertical	300 V	2	8 A	Black	20	Header Male Pins Shrouded (4 Side)	Tin	Mating Flange	3.5 mm	0.138 "	10	Through Hole	Solder	11.6 mm	0.457 in

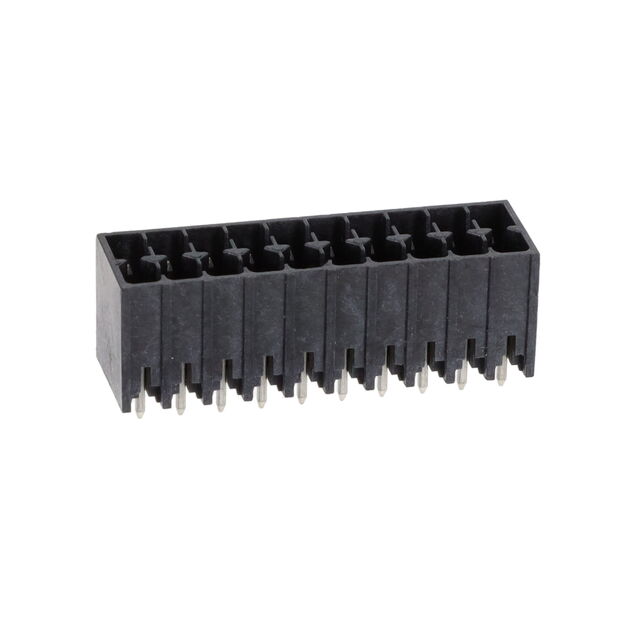

On Shore Technology Inc. OSTNR201100	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	UL94 V-0	Copper			115 °C	-40 C	Vertical	300 V	2	8 A	Black	20	Header Male Pins Shrouded (4 Side)	Tin		3.5 mm	0.138 "	10	Through Hole	Solder	11.6 mm	0.457 in
